Keysight Technologies 16034G Test Fixture

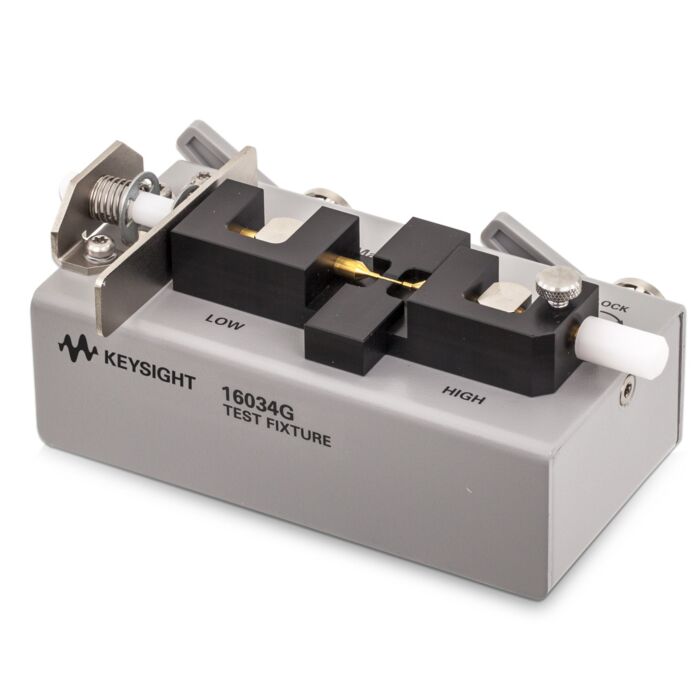

Keysight 16034G Test Fixture

Order # 16034G

Mfg # 16034G

call-regular 800-828-1470
$4,851.00
Loading...
Loading...
  • Overview

Keysight 16034G Test Fixture

Order # 16034G | Mfg # 16034G
$4,851.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

  • DUT Dimensions: (minimum applicable)0.6mm(L)x0.3mm(W)
  • Measurement Instrument: 4192A, 4294A, 4263B, 4268A, 4278A, 4279A, 4284A, 4285A, E4980A
  • Frequency: DC to 40MHz (up to 110MHz with OPEN/SHORT/LOAD Compensation)
  • DC Bias: -40V to +40V
  • Operating Temperature: 0 to 55degC
  • Terminal Connection: BNC, 4 terminal-pair
  • Dimensions(approx.): 120(W) x 50(H) x 70(D)mm
