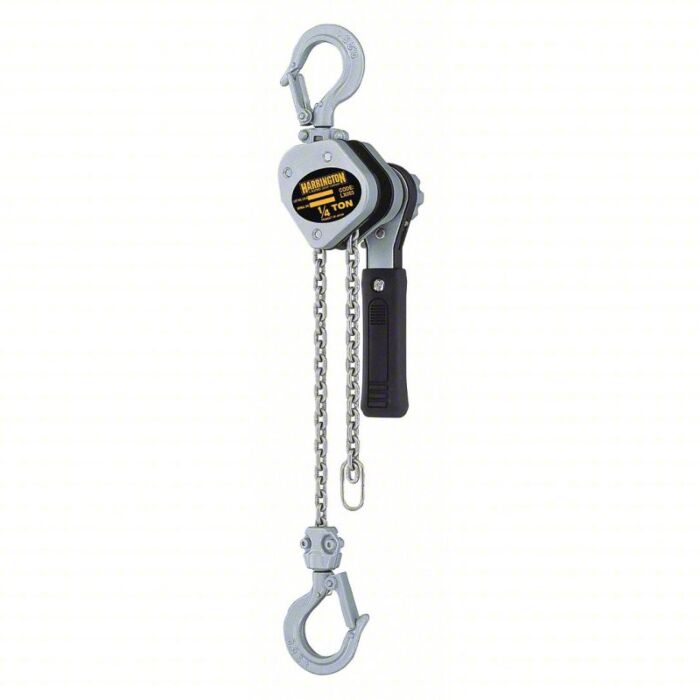

Harrington Hoists and Cranes LX003-10' 1/4 TON CHAIN HOIST MINI-PULLER 10' HARRINGTON

Harrington Hoists and Cranes LX003

Order # LX003-10'

Mfg # LX003-10

call-regular 800-828-1470
$549.99
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications

Harrington Hoists and Cranes LX003

Order # LX003-10' | Mfg # LX003-10
$549.99
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

10 ft. Lift Lever Hook Mounted Chain Hoists Made with all-steel construction, these spring-loaded, free-wheeling devices allow adjustment and safeguard against accidental free wheeling. Features include Weston-style load brakes, dual-stage reduction gearing, and hardened alloy steel, nickel-plated grade 100 load chains. The top and bottom hooks rotate 360° and open slowly without fracturing under overloads.

Technical Resources

Harrington Hoists and Cranes LX Series Datasheet

Specifications

Load Capacity 500 lb
Hoist Lift 10 ft
Min. Between Hooks 8 in
Pull to Lift Rated Load 40 lb
Reeving 1
Lever Length 5-29/32 in
Hook Opening 51/64 in
Brake Weston Style Load Brake
Chain Nickel Plated
Chain Length 11 ft
Finish Electrostatic Enamel
Standards ASME B30.21; ASMEHST-3
Includes Load Chain
Hoist Overload Protection No
Hoist Mount Hook Mounted - No Trolley
