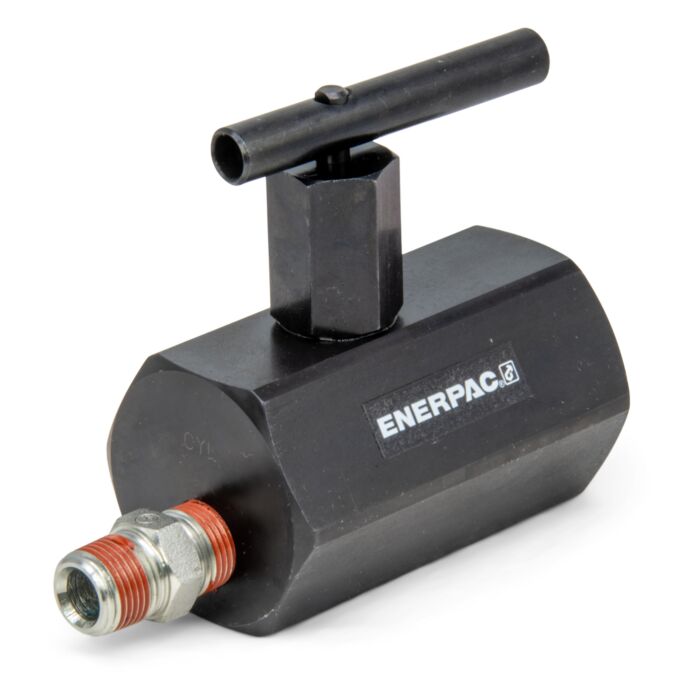

Enerpac V66 Manually Operated Check Valve with Built-in Relief Valve

Product Highlights

Manually Operated Check Valve with Built-in Relief Valve

V66, V66NV: Manually Operated Check Valves include a built-in relief valve. They allow the operator to switch the direction of the fluid quickly, making it suitable for load holding applications with single and double-acting cylinders. The V66NV model features Viton seals and a Nickel-plating for enhanced resistance to corrosion.

V66F: Similar to V66, but with very fine metering capability for precise flow control. The V66F is not designed for load holding applications.

The integral relief valve is set at 11,500 psi (790 Bar). The oil port connections are 3/8" NPTF.

For load holding applications with single and double acting cylinders. Valves allow oil to flow back to tank when cylinder retracts. Built-in relief valve set at 11,500 psi (790 Bar)
