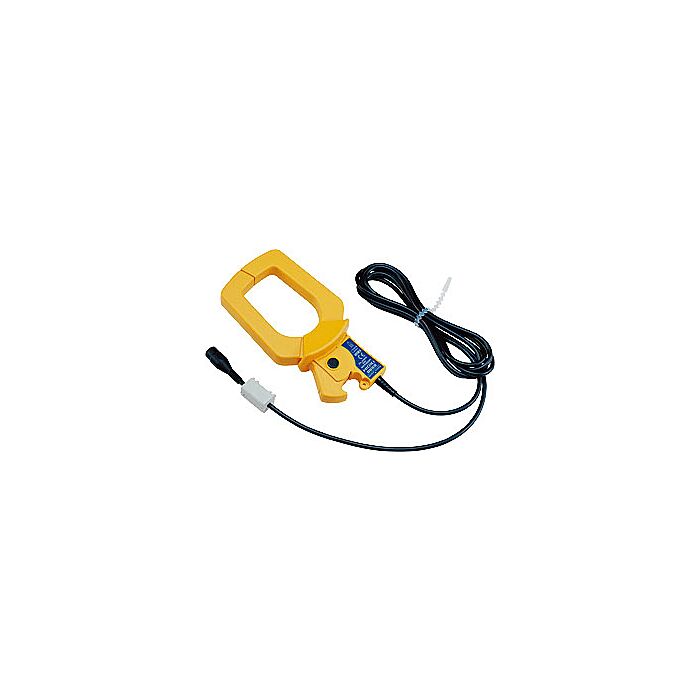

Hioki 9669 1000 Amp Current Sensor

Product Highlights

• Clamp-on sensor for the Power Quality Analyzer 3196, 3197 and Clamp On Power HiTester 3169
• For input up to AC 1000A
• Designed with a safety barrier to protect the user from being in direct contact with live conductors
• Rated input current: 1000 A AC
• Rated output current: 0.5 V AC
• Accuracy (at 45 to 66 Hz) Amplitude: ± 1.0 % rdg. ±0.01 % f.s. (Full scale (f.s.) is the 3196 range value)
• Phase: ± 1° or less
• Frequency characteristics: 66 Hz to 5 kHz (±1 % or less from accuracy)
• Max. allowable input: continuous 1000 A rms (45 to 66 Hz)
• Max. circuit voltage: 600 V AC rms (insulated wire)
• Core jaw dia.: Ø55 mm (2.17 in), 80 mm (3.15 in) × 20 mm (0.79 in) busbar
• Dimensions: 99.5 mm (3.92 in) W × 188 mm (7.40 in) H × 42 mm (1.65 in) D
• Mass: 590 g (20.8 oz)
• Cord length: 3 m (9.84 ft)
