Bandwidth

DC to 10MHz (-3dB), refer to Appendix 1 Amplitude

Characteristics (RP1005C)

Rise Time

≤35ns

Linear Response

Range of Input Current

150A, refer to Appendix 2 Relation between Max Input Current and Frequency (RP1005C)

Maximum Peak

Current

300A peak, non-continuous

500A peak, pulse width≤30μs

Gain

0.01V/A

Gain Accuracy

±1.0%rdg±1mV, ≤150A

±2.0%rdg, 150A to 300A peak (DC and

45Hz to 66Hz)

Noise

≤25mArms (for 20MHz band measuring instrument)

Input Impedance

Refer to Appendix 3 Input

Impedance (Typical) (RP1005C)

Gain Accuracy Drift

≤±2% (0℃ to 40℃ temperature, input of 55Hz, 150A)

Rated Power

5.5W

Supply Voltage

+12V±1V

Maximum Rated

Voltage

600V: CATII;

300V: CATIII (insulated conductor)

Gain Accuracy Period

1 year (opening/closing up to 10,000 times)

Effect of External Magnetic Fields

≤150mA (DC and 60Hz, magnetic field of 400A/m)

Probe

Dimensions

Current Sensor

RP1003C: approx. 175mmx18mmx32mm

RP1004C: approx. 175mmx18mmx32mm

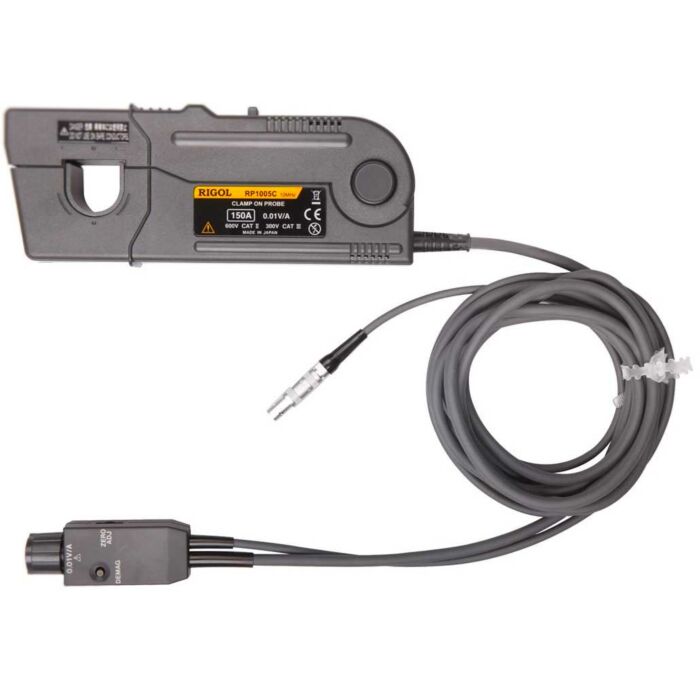

RP1005C: approx.

176mmx69mmx34mm
