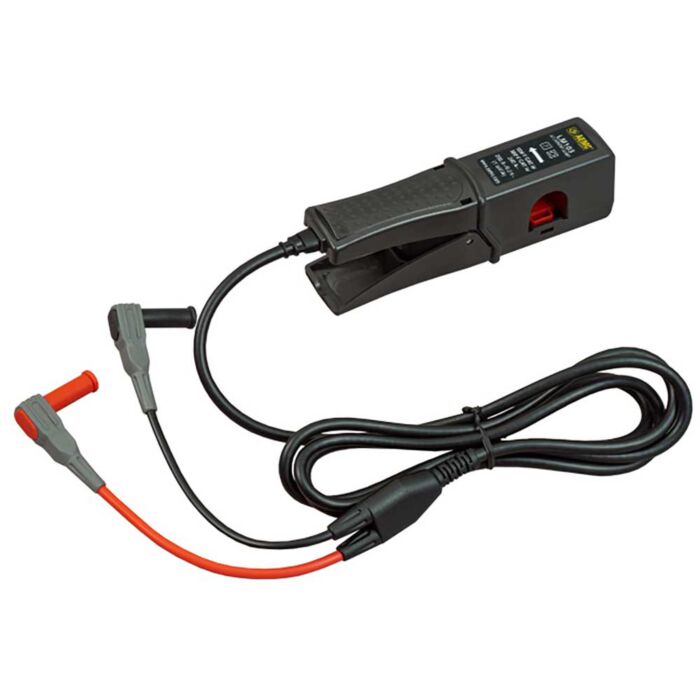

AEMC Instruments LM103 AC Current Probe (200A/1mv/A)

Order # LM103 | Mfg # 2153.05
Save 5%
$441.87
$419.77
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

The LM103 is a general-purpose AC current probe designed for Power analyzer, DMM and other measuring instruments with voltage input. It has an output of 1mV per Amp. The LM103 has integral 5 ft (1.5m) leads terminated by safety 4mm banana plugs.

  • Clamping diameter 0.63" (16mm)
  • Measurement range from 0.1 to 200 Amps
  • Over range up to 350 Amps continuous
  • 1ma/A output (model LM102)
  • 1mv/A output (model LM103)
  • Clothes pin design allows access to tight places
  • Frequency response from 48 to 10kHz
  • Arrow marker clearly assist in proper orientation for power measurement applications

Technical Resources

AEMC LM Series Datasheet
AEMC LM 103 User Manual

Specifications

Maximum Conductor Size .63" (16mm)
Current Range 200Arms AC
Measurement Range 0.01 to 350A
Output Signal 1mV/A AC (200mV @ 200A)
Transformation Ratio 1000:1
Output 5 ft (1.5m) lead with 4mm safety banana plug
Accuracy 50/60Hz 1.5% ± 0.02A
Frequency Range 48Hz to 10kHz
Phase Shift at 50Hz 3° max
Load Impedance ?10K?
Overload 350A continuously up to 1kHz
Dimensions  (HxWxD) 5.12 x 1.81 x 1.34" (130.4 x 46 x 34mm)
Weight 8.8 oz (250g)
Operating Temperature 14° to +122°F (-10° to +50°C)
Storage Temperature -40° to +176°F (-40° to +80°C)
Operating Humidity 85% RH
Pollution Degree 2
Ingress Protection (lP) IP40
EMC EN 61326-1
Safety Compliance EN/IEC 61010-2-32, 600V CAT III
