Pomona 6286

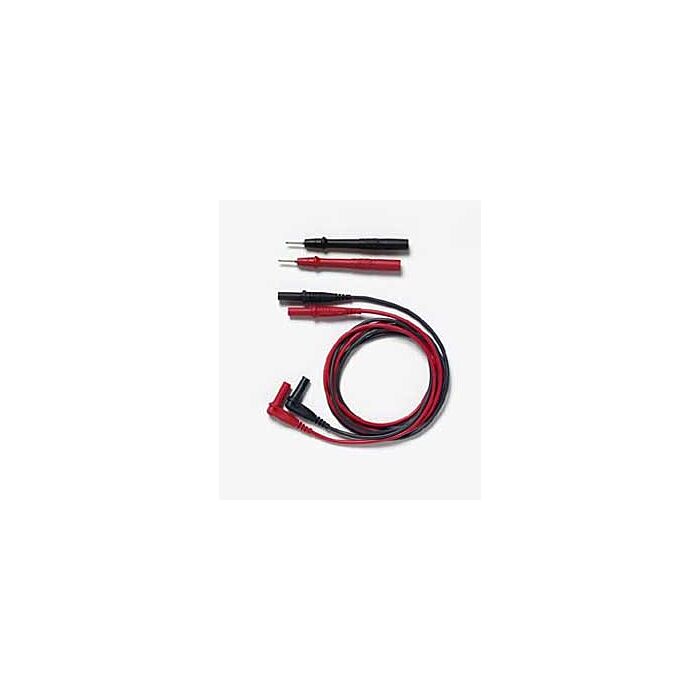

Modular Probe DMM Test Kit

Order #: 6286

Mfg #: 1902242

Special Price $48.79 Regular Price $58.79

Availability: Ships in 1-2 weeks

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Designed to meet IEC 1010-2-31, the latest international safety standard for test accessories
Probe safety jack mates to Pomona’s 5907A, 5908A and 5909A Flexible Test Leads
Notched probe tip mates into standard 0.080” pin jacks
Flexible test lead sets are a perfect interface for the most popular multimeters configured with 4 mm sheathed safety jacks, including Fluke, H-P, Tektronix and Wavetek
Plug and housing are molded directly to the cable in an integral one piece design and the wire is double crimped for a long lasting connection
Multi-leaf banana spring material is Beryllium Copper, nickel plated for extended insertion cycle life and low contact resistance
High strand count silicone insulated wire offers excellent flexibility and high temperature resistance
Test leads can mate to a broad assortment of Pomona probes, alligators, spade lugs, etc.

Pomona Model 6286 Datasheet
