Olympus Evident MAGNAMIKE-8600 for Rent, Magnetic Thickness Gauge for Nonferrous Materials to 25.4m

Product Highlights

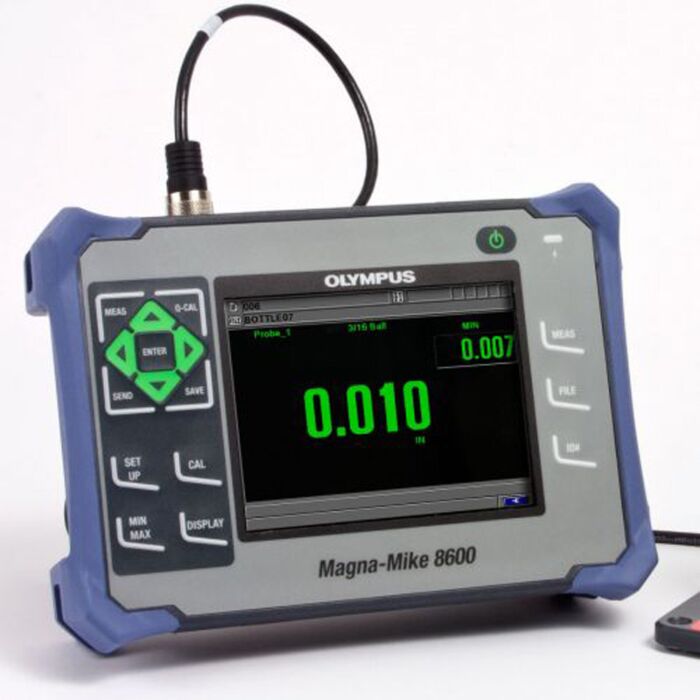

The Magna-Mike® 8600 is a portable thickness gage that uses a simple magnetic method to make reliable and repeatable measurements on nonferrous materials. Operation of the Magna-Mike is very simple. Measurements are made when its magnetic probe is held or scanned on one side of the test material and a small target ball (or disk or wire) is placed on the opposite side or dropped inside a container. The probe's Hall Effect sensor measures the distance between the probe tip and target ball. The measurements are instantly displayed on the large color thickness display as an easy-to-read digital thickness reading.

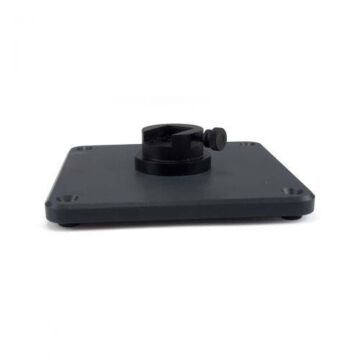

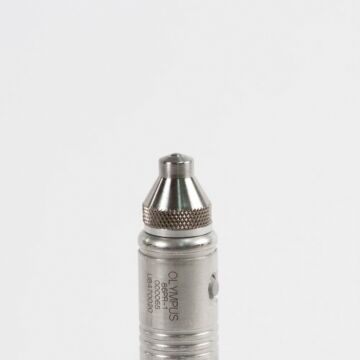

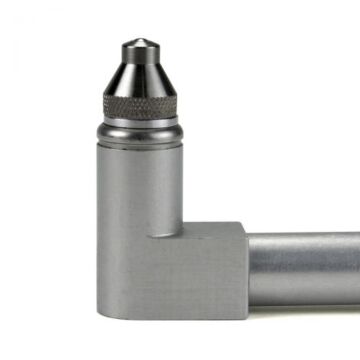

• Three new durable probe designs: Straight, Right Angle, and Low-profile Articulating
• Replaceable Wear Caps: Standard, Chisel tip, and Extended Wear (for 86PR-1 and 86PR-2 only)
• Expanded target selection: 3/16 and 1/4 in. magnetic target balls; 0.045 in. (1.14 mm) 0.026 in. (0.66 mm) diameter wire target
• Expanded thickness range up to 25.4 mm (1.00 in.)
• Larger Color VGA display
• RS-232, USB and VGA outputs
• Fast Measurement update rate 60 Hz
• Expanded alphanumeric data logger
• Save and Recall stored calibration files
• Ability to export file to MicroSD card in .txt and CSV formats
• New accessory kits (Calibration kits):
  • Standard up to 9.1 mm (0.360 in.)
  • Extended range up to 25.4 mm (1 in.)
  • Disk kit
  • Wire target kit
  • Low-profile probe kit
