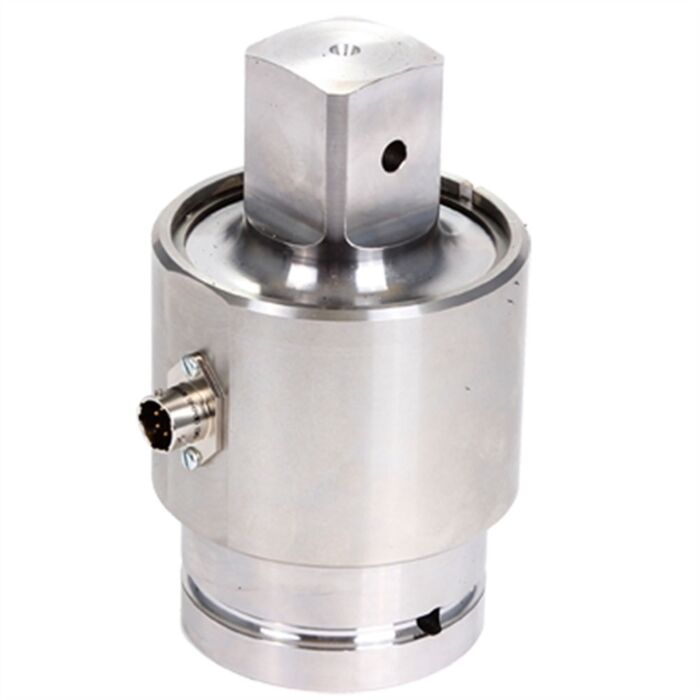

Norbar Torque Tools 50703.LOG
Smart Static Transducer 2500Nm,1-1/2"M/F Drive
Order #: 50703.LOG
Mfg #: 50703.LOG
Special Price
$7,442.28
Regular Price
$7,752.38
Norbar Torque Tools 50703.LOG
Smart Static Transducer 2500Nm,1-1/2"M/F Drive
Order #: 50703.LOG
Mfg #: 50703.LOG
Special Price
$7,442.28
Regular Price
$7,752.38
The accuracy and quality of the Norbar Static Torque Transducer has made them the first choice of many calibration laboratories thoughout the world.
Availability: Ships in 3-4 weeks
Product Highlights
- Accuracy: ±0.5%
- Operates between: 250.0 - 2500.0 N·m
- Weight: 4.6 Kg
- Temp Range Operating: -10°C to +50°C
- Temp Range Storage: -20°C to +70°C
- Thermal Effect On Span: < +/- 0.03%/°C
- Thermal Effect On Zero: < +/- 0.01%/°C
- Torsional Deflection: < 1°
- Fatigue: > 10 exp 7 cycles
- Maximum Torsion Capacity: 150%
- Connector: 6 Way Mil Spec
- Drive 1: 1 1/2" Male Square
- Drive 2: 1 1/2" Female Square
- Robust, heat treated, alloy steel torsion shaft design.
- Designed to ignore non torsional forces.
- Operates in clockwise and anti-clockwise directions.
- Calibrated in clockwise direction as standard. Anti-clockwise calibration provided on request.
- 'SMART' transducers have a built in memory circuit which contains essential information about the transducer. This information can be read by Norbar's 'Pro-Log' instrument meaning that when the transducer is connected, it is immediately recognized and ready for use. When ordering for a Pro-Log, use part code suffix '.LOG' (eg. 50659.LOG) if you require a torque units calibration certificate.
- 'SMART' transducers can also be used with many instruments not of Norbar manufacture. However, these will operate as normal ratio calibrated (mV/V) transducers - the 'SMART' data will not be read. For non Norbar instruments or for when a mV/V certificate is required, use part code suffix '.IND'.
- Calibration up to 100,000 N·m with UKAS Certificate.
