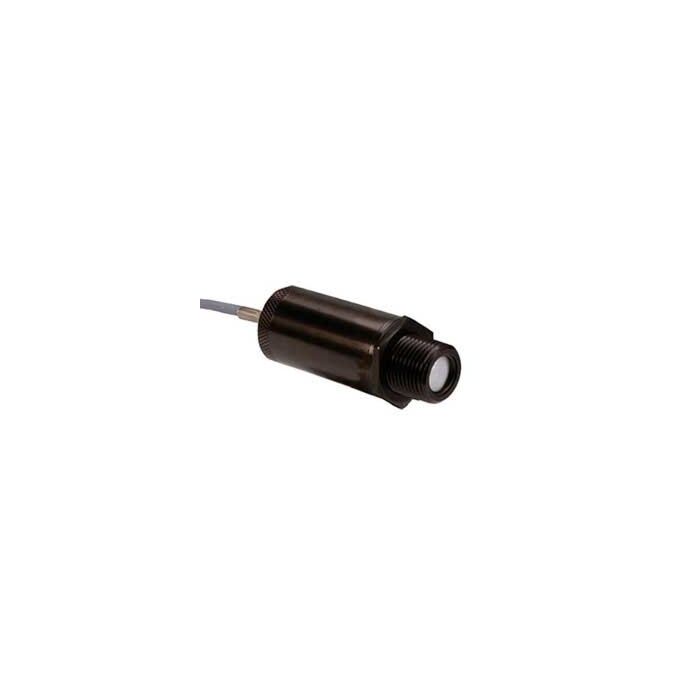

Newport Electronics IR-USB
Infrared Temperature Sensor with USB Interface
Order #: IR-USB
Mfg #: IR-USB
$336.15
Newport Electronics IR-USB
Infrared Temperature Sensor with USB Interface
Order #: IR-USB
Mfg #: IR-USB
Product Highlights
- Connects Directly to a USB Port on Your Computer
- Free Software Converts Your PC into a Temperature Meter, Data Logger or Chart Recorder
- -18 to 538°C (0 to 1000°F) Measurement Range
- Adjustable Emissivity from 0.10 to 1.0
- PC Interface: USB
- USB Cable: Integral to sensor, 2 m (6') shielded Type A plug
- Software (Included): Requires Windows® 2000, XP, Vista or Windows 7 operating system
- Temperature Range: -18 to 538°C (0 to 1000°F) Accuracy @ 22°C (72°F) Ambient Temperature and Emissivity of 0.95 or Greater: ±2% rdg or 2.2°C (4°F), whichever is greater
- Optical Field of View: 6:1 (distance/spot size)
- Repeatability: ±1% rdg
- Spectral Response: 5 to 14 microns
- Response Time: 100 ms (0 to 63% of final value)
- Emissivity Range: 0.1 to 1.00, adjustable
- Operating Temperature
- Sensor Head: 0 to 70°C (32 to 158°F)
- Sensor Head (-HT Model): 0 to 85°C (32 to 185°F)
- Sensor Head with OS100-WC(Water Cooling Jacket): 0 to 200°C (32 to 392°F)
- Operating Relative Humidity: Less than 95% RH, non condensing
- Water Flow Rate (OS100-WC): 0.25 GPM, room temperature
- Thermal Shock: ˜30 minutes for 25°C (77°F) abrupt ambient temperature change
- Warm-Up Period: 3 minutes
- Air Flow Rate (OS100-AP): 1 CFM (0.5 L/s) (1 x 2.5")
- Laser Sight Accessory (OS100-LS)
- Wavelength (Color): 630 to 670 nm (red)
