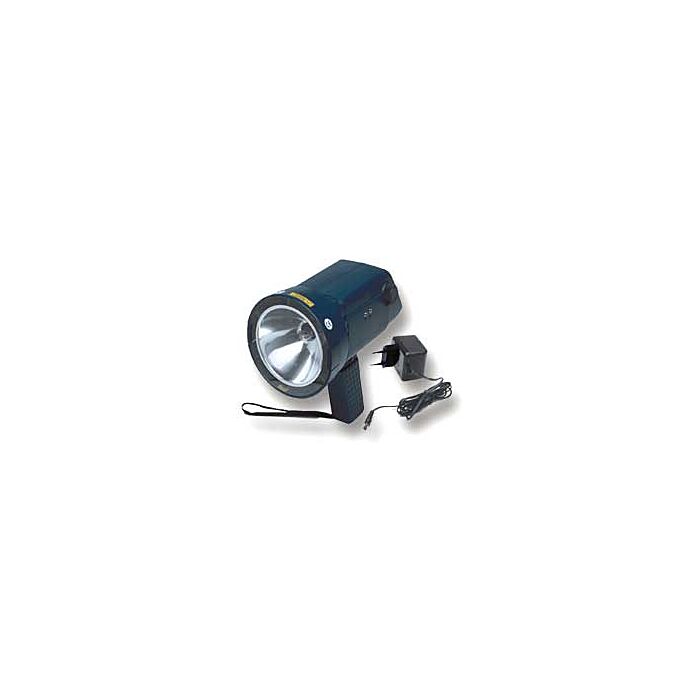

Monarch Instrument 6204-012
115/230 Vac Stroboscope

Order #: 99207TS

Mfg #: 6204-012

Questions about availability or need help? Contact Us:

(800) 633-0561
$959.00

Monarch Instrument 6204-012

115/230 Vac Stroboscope

Order #: 99207TS

Mfg #: 6204-012

$959.00
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • 20% brighter than previous models - advanced switching power supplies run cool
  • Battery models weigh less than 2lbs and run twice as long
  • All models are RoHS compliant (lead free)
  • Flash rates from 30 to 20,000 flashes per minute, adjustable in 0.1 step increments, the coarse/fine adjustment knob makes it quick and easy to set the exact flash rate you want
  • Digital controlled microprocessor keeps readings rock steady
  • Internal phase shifting allows the target to be jogged clockwise or counter clockwise in 5° increments
  • Times 2 and divide by 2 push buttons allow easy checking for actual RPM, harmonics and allow stop motion far beyond the 14,000 fpm limit
  • Store and recall up to 6 user selectable values
  • Last measurement memory, even with the power off
  • Flash rate may be displayed in Flashes per Minute (RPM) or Flashes per Second (Hz)
  • Individual input and output TTL jacks (1/8 inch phone) provides power to remotes sensors and allows "daisy-chaining" of multiple strobes
  • Power is provided for external sensors
  • Tachometer mode allows accurate speed measurement up to 250,000 RPM using external sensors
  • Tripod mounting bushing in handle

Each Unit Includes

  • NIST Certificate of Calibration
  • Universal recharger (90 - 240 Vac)
