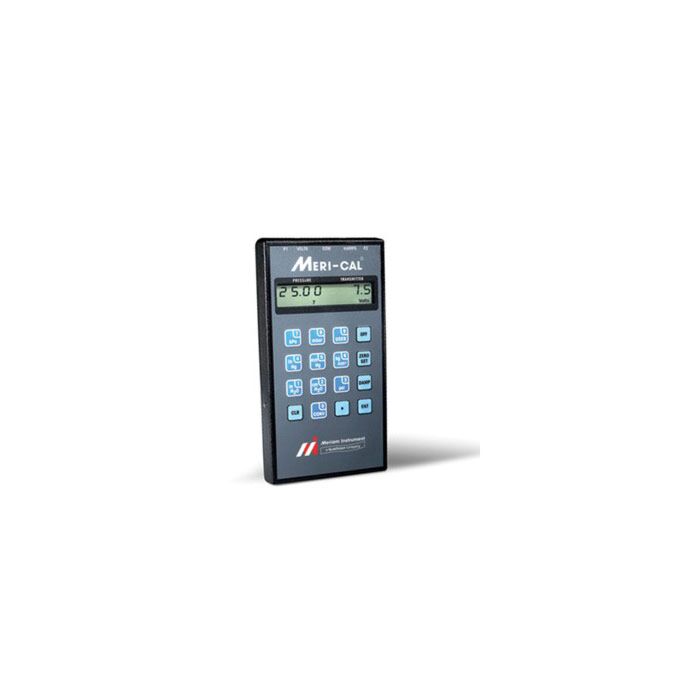

Meri-Cal's display simultaneously indicates pressure (or differential pressure) and electronic transducer/transmitter output in any of eight key selectable engineering units. Meri-Cal continues to provide the most cost effective and useful method of precise measurements.
The Meri-Cal may be used for test measurement of pressure or differential pressure and as a calibrator for mechanical recorders, gauges, pneumatic controls and electronic transducers and transmitters.
Compatible file extensions to upload:
Why Calibrate?
Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.
Already have this item and need calibration? Request a quote
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Product Highlights
Range: 0/200" H2O
Applications: Differential, Gauge Pressure and Vacuum
Display: 8 digit (4 pressure or DP and 4 voltage or current) LCD type with .3" high (7.6 mm) digits
Process connection: 1/8" OD Presto-lok
Enclosure: 1.1 pounds (0.5 kg) 4 x 7.5 x 1.9 (102mm x 191mm x 48mm)
Impact resistant
Resolution: Auto-ranging for optimal accuracy and resolution of the display for both pressure and electrical inputs
AC charger/adaptor must be ordered separately (Transcat # 6217P)
