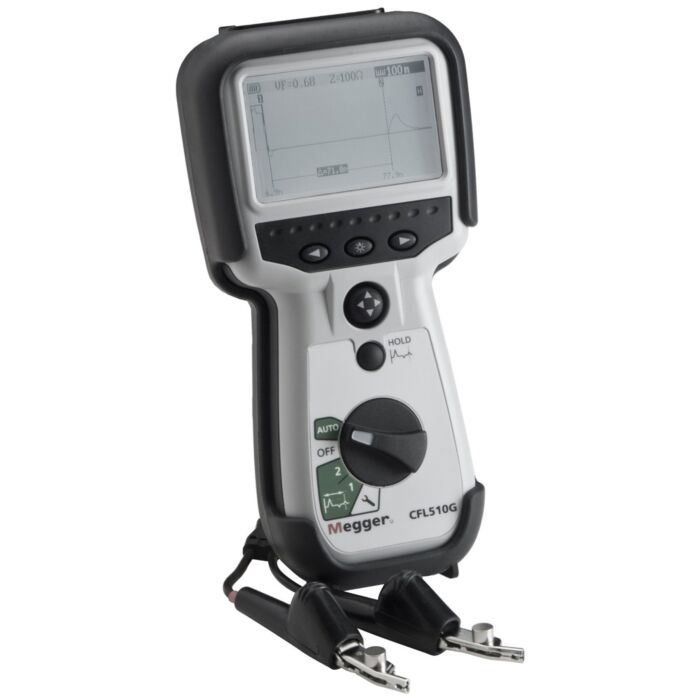

Megger CFL510G Hand-Held Time Domain Reflectometer

Product Highlights

• Simple to Operate
• Auto Set-up for Instant Use
• Ultra Fast Pulse for Near-End Fault Identification
• Designed for Use on all Metallic Cable Pairs
• Dual Cursors Allow Complete Flexibility, Giving the User Full Control and Instant Indication of Distance Between Two Points
• A Unique, Easy One-Button Press and HOLD Feature Allows Comparison Between Cable Conditions
• Extra High Resolution, a White-Light Backlight, and Grayscale Tones Gives a Vibrant Graphical Display, Useful in Identifying Key Events on the Trace
• Resolution to 0.1 m
• For Use on Telecom TNV-3 Circuit or 150 V CATIV Power Circuit
• Power Blocking Filter not Required
• Environmental Protection to IP54
• Auto Selected Output Impedance (Between 25, 50, 75 and 100 ohms)
• 2 ns Pulse for Near-End Fault Location
• AUTO Option Selecting Gain and Pulse for Each Range
• Display Distance in Meters or Feet

Each Unit Includes

• Hard carrycase
• Miniature clip test lead set
• User guide CD
