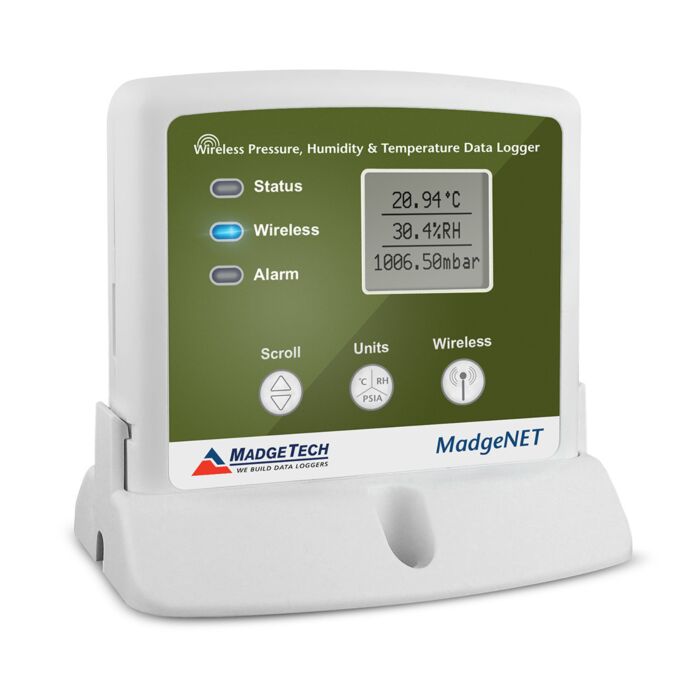

MadgeTech RFPRHTEMP2000A Wireless Pressure, Humidity & Temperature Data Logger w/LCD

MadgeTech RFPRHTEMP2000A

Order # RFPRHTEMP2000A

Mfg # RFPRHTEMP2000A

call-regular 800-828-1470
$699.27
Loading...
Loading...
  • Overview
  • Technical Resources
  • Specifications

MadgeTech RFPRHTEMP2000A

Order # RFPRHTEMP2000A | Mfg # RFPRHTEMP2000A
$699.27
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Wireless Pressure, Humidity & Temperature Data Logger with LCD

The RFPRHTemp2000A is a wireless pressure, humidity and temperature data logger. Includes standard calibration certificate.

  • Digital Display
  • Continuous Monitoring
  • Configurable Alarms & Notifications

The RFPRHTemp2000A is a wireless pressure, humidity and temperature data logger. It's the all-in-one solution for monitoring and maintaining critical conditions.

This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFPRHTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The RFPRHTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFPRHTemp2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.

Technical Resources

Specifications

Memory 10,752 readings (all channels enabled)
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 250,000
LED Functionality
  • Green LED blinks every 5 seconds to indicate unit is logging
  • Blue LED blinks every 15 seconds to indicate unit is in wireless mode
  • Red LED blinks every 1 second to indicate alarm condition
Battery Life 5 years typical at a 15 minute reading rate
Material ABS plastic
Dimensions 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
IP Rating IP22
Operating Environment -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing, 0.002 PSIA to 100 PSIA
Required Interface Package RFC1000
Approvals US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
Internal Channel Temperature Sensor Resistance Temperature Detector (RTD)
Internal Channel Temperature Range -20 °C to +60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution 0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy ±0.5 °C (+5 °C to +55 °C)
Humidity Sensor Relative Humidity Sensor
Humidity Range 0 %RH to 95 %RH
Humidity Resolution 0.1 %RH
Humidity Calibrated Accuracy ±3 %RH
Pressure Sensor Silicon
Pressure Range 250 mbar to 1300 mbar
Pressure Resolution 0.02 mbar
Pressure Calibrated Accuracy 10 mbar (+5 °C to +55 °C)
RF Baud Rate 250,000
Output Power +0 dBm typical
Receiver Sensitivity -95 dBm typical
Typical outdoors Line of sight Up to 2000 ft
Typical Indoors line of sight Up to 500 ft
