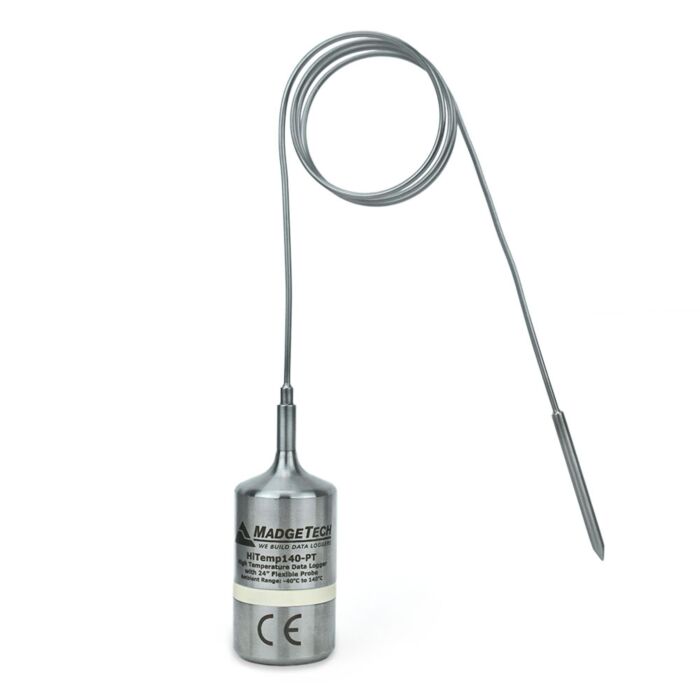

MadgeTech HITEMP140-PT-5 for Rent, Temperature Data Logger, -40 to 140C, 24" Flex Probe, 5" Piercing Tip
Temp.Data Logger,-40-140°C,24" Flex Probe,5"Piercing Tip

Order #: HITEMP140-PT-5-RENT1

Mfg #: HITEMP140-PT-5-RENT1

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

MadgeTech HITEMP140-PT-5 for Rent, Temperature Data Logger, -40 to 140C, 24" Flex Probe, 5" Piercing Tip

Temp.Data Logger,-40-140°C,24" Flex Probe,5"Piercing Tip

Order #: HITEMP140-PT-5-RENT1

Mfg #: HITEMP140-PT-5-RENT1

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price
Availability: Call for Availability
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This item has NEW version starting at
$539.00
Shop now

Product Highlights

The HiTemp140-PT is a submersible, high temperature data logger with a 24 inch bendable probe. This device is extremely versatile and can be tailored to the application with various probe lengths and styles available.

The HiTemp140-PT can withstand temperatures ranging from -40 °C to +140 °C (-40 °F to +284 °F), but is capable of measuring extended temperatures up to 350 °C (662 °F) (probe dependent). With a storage capacity of up to 65,536 time and date stamped readings, the HiTemp140 can be programmed for immediate start or delayed start up to 18 months in advance.

The HiTemp140-PT is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Transcat Rentals - Rent Equipment from the Industry Leader
   Try Before You Buy
   Save Time & Money
   Weekly and Monthly Rentals
   Access Our Large Inventory
   Long-term Discounts and Rent-to-Buy Options Available

Shop all Rentals

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Memory 65,536 readings
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 125,000
Battery Life 2 years typical (1 minute reading rate), User Replaceable Battery
Material 316 Stainless Steel
HiTemp140 Pig Tail Probe Dimensions Body: 1.75 in x 0.97 in dia. (45 mm x 25 mm dia.)
HiTemp140-PT-1: Probe tip is 1.7 in x 0.125 in dia. (42 mm x 3.2 mm dia.)
Bendable portion is 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.)
HiTemp140-PT-5: Probe tip is 4.8 in x 0.125 in dia. with 1 in x 0.188 dia. handle (121 mm x 3.2 mm dia. with 25 mm x 4.8 mm dia. handle)
Bendable portion is 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.)
HiTemp140-PT-12: Probe tip is 1.7 in x 0.125 in dia. (42 mm x 3.2 mm dia.)
Bendable portion is 12 in x 0.062 in dia. (305 mm x 1.6 mm dia.)
IP Rating IP68
Submersible Yes
Operating Environment -40 °C to +140 °C (-40 °F to +284 °F); 0 %RH to 100 %RH; 0.002 PSIA to 100 PSIA (Body of Logger Cannot Exceed 140 °C)
Required Interface Package IFC400
Approvals CE
