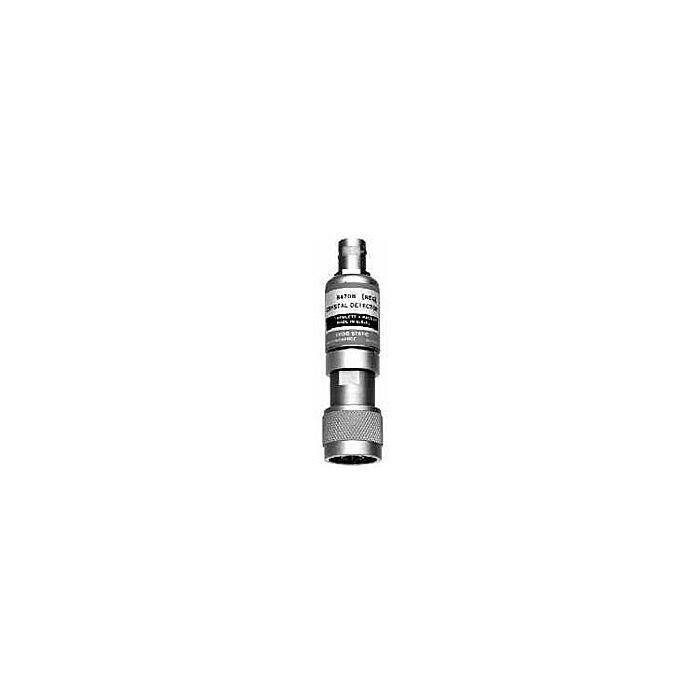

Keysight 8470B 18GHz LBHCD Crystal Detector

Product Highlights

• Frequency response: ±0.3 dB to 12.4 GHz, ±0.5 dB to 15 GHz, ±0.6 dB to .18 GHz
• Maximum SWR: 1.15 to 4 GHz, 1.3 to 18 GHz)
• Low-level sensitivity: > 0.5 mV/uW
• Maximum operating input power: 200 mW
• Typical short-term maximum input power (< 1 minute): 1 W
• Noise: < 50 uV
• Output polarity: negative
• Input connector: APC-7
