Keysight J2298B Highlights
The Keysight J2298B E1/T1Interface Module operates with the Keysight Advisor ATM/WAN. The interface supports E1 or T1 configurations, as well as full or fractional E1/T1 on both ATM and WAN.It is highly specialized for ATM and Frame Relay testing.It also handles technologies such as ATM DXI, X.25, HDLC, SDLC, Async PPP and PPP. This interface provides fully integrated monitoring and simulation solutions.

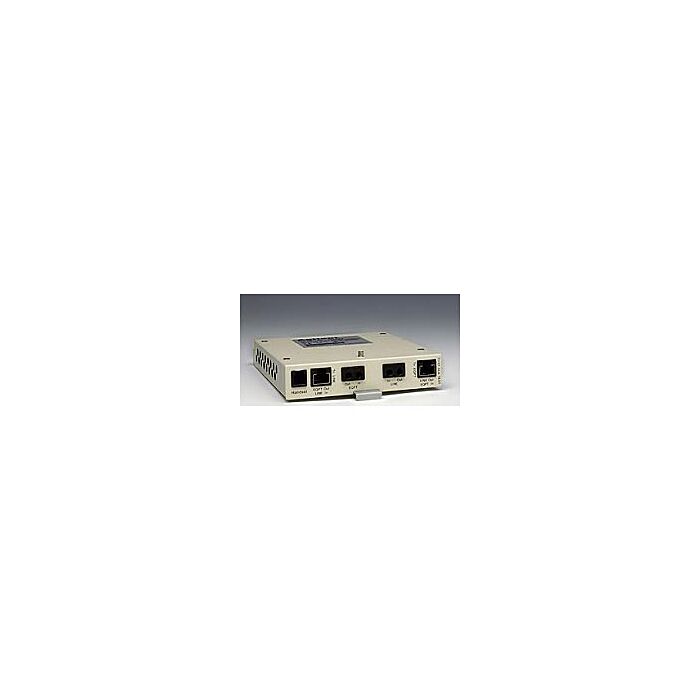

The J2298B module has 4 Bantam connectors and two 8-pin connectors that can easily switch between RJ-48C and RJ-45 pin wiring.
For ATM, some of the major benefits of these interfaces are:
- Capture and decoding for ATM, AAL-1, AAL-2, AAL-3/4, AAL-5 plus signaling and several hundred higher layer protocols
- O.191 based ATM layer QoS measurements
- Traffic contract conformance analysis (policing)
- UNI signaling emulation for SVC set-up verification
- Capture filtering includes filtering based on encapsulated IP addresses
- Sophisticated display filtering and search capability on captured data
- Statistics and logging of statistics to disc
- Physical layer impairment statistics
