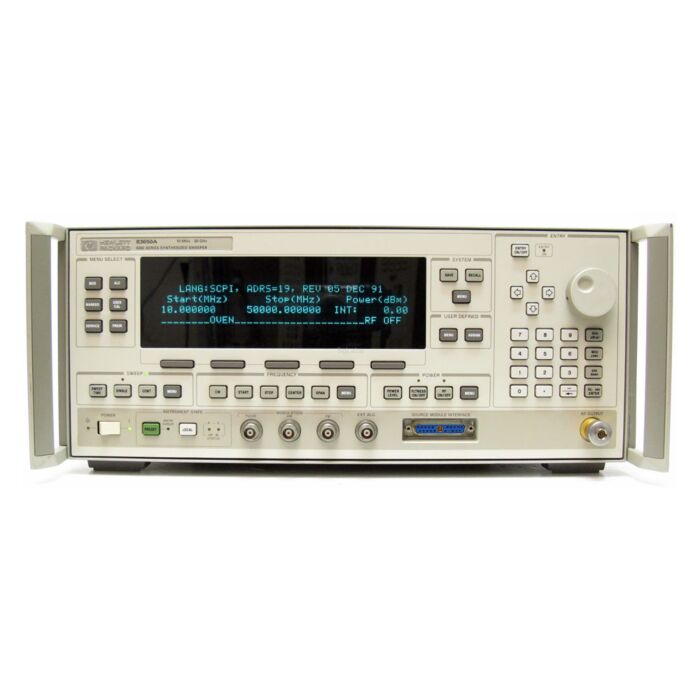

Keysight / Agilent 83650A for Rent, Synthesized Swept-Signal Generator, 10MHz to 50GHz
Order #83650A-RENT2|Mfg #83650A-RENT2
For Rent
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
Overview
Product Highlights
Scan modulation to simulate antenna scan patterns
Accurate fixed and swept frequency offset for two-tone measurement
User flatness correction for leveling at remote points in the test system
General purpose source for use in component test, receiver test and for frequency conversion
Sweep Modes: Step, List, Ramp
Maximum Power: +10 dBm <26.5 GHz
Maximum Power: +5 dBm >26.5 GHz
Maximum Power: +2.5 dBm >40 GHz
Power Sweep Range: -20 dBm to maximum power
Phase Noise (50 GHz at 10 KHz): -68 dBc
Max FM Deviation (locked): +/- 8 MHz
The Keysight 83650A synthesized sweeper is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Keysight 83650A to achieve low single-sideband phase noise performance. It delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 26.5 GHz, and at least 40 dB below the carrier above 26.5 GHz.
