Product Highlights

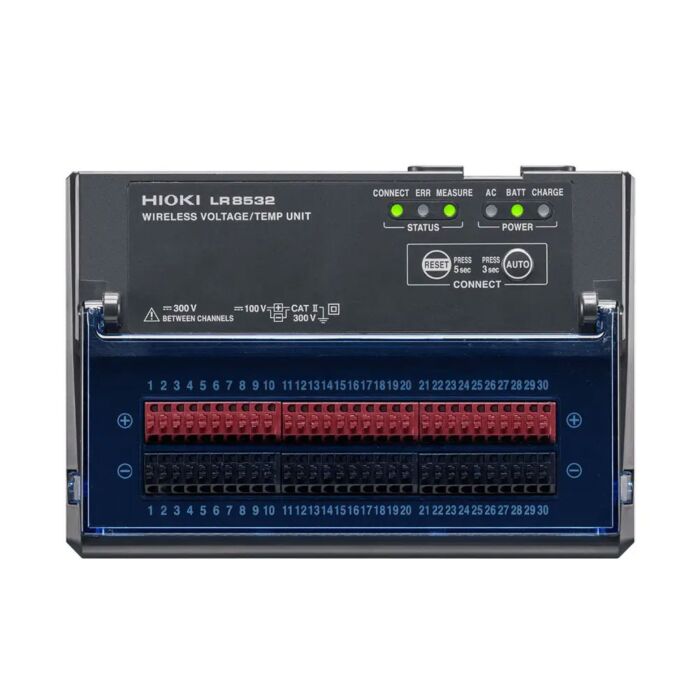

The Hioki LR8532 provides 30 channels with a sampling rate of 20 ms. It used for DC voltage measurement and temperature measurement using thermocouples. The wireless Voltage/Temp unit LR8532 can operate for about 9 hours on battery power. If the unit is charged at night, it can operate on the battery pack alone during the day.
The LR8532 cannot perform measurement by itself. Memory HiLogger LR8450-01 is required separately. By attaching the Z3230 Wireless LAN Adapter (accessory), LR8532 can be wirelessly connected to the Memory HiLogger LR8450-01.
Features
- For use with LR8450-01 Wireless LAN Multi-Channel Data Logger
- Suitable for convenient installation in testing equipment and confined locations
- Built-in buffer memory can hold up to 5 minutes of measurement data
- Operates for approximately 9 hours on battery power (sold separately)
- Number of channels: 30 (users can set voltage or thermocouple for each channel)
- Maximum sampling rate: 20 ms (when 15 or fewer channels are used, 10 ms)
- Range (line of sight): 98.4 ft. (30 m)
- Input terminals: Push-button type terminal block (2 terminals per channel)
- Measurement target: Voltage, thermocouples
- Dimensions (W x H x D): 6.06 x 4.17 x 2.24 in. (154 x 106 x 57 mm)
- Weight: 13.7 oz. (388 g)
