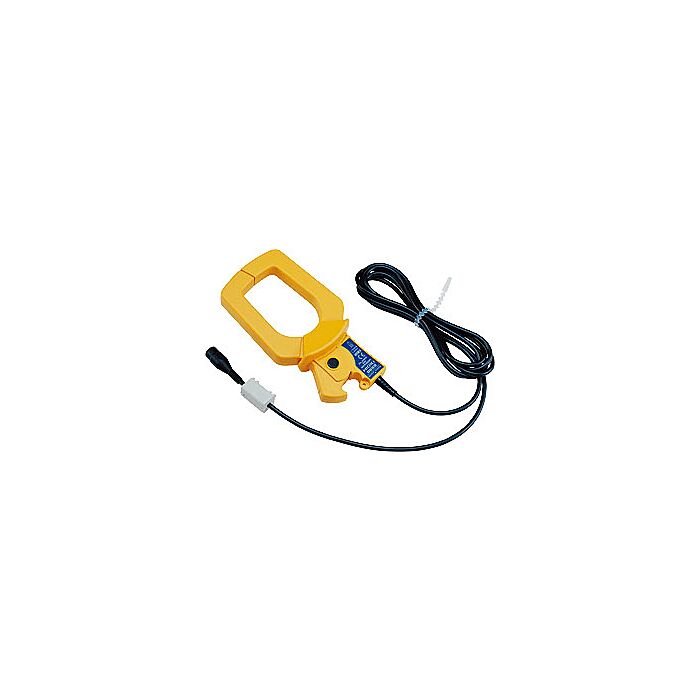

Hioki 9669
1000 Amp Current Sensor

Order #: 9669

Mfg #: 9669

Questions about availability or need help? Contact Us:

(800) 633-0561
$721.00

Hioki 9669

1000 Amp Current Sensor

Order #: 9669

Mfg #: 9669

$721.00

Hioki products are available to ship to customers in the United States only.

Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Puerto Rico only.

Product Highlights

  • Clamp-on sensor for the Power Quality Analyzer 3196, 3197 and Clamp On Power HiTester 3169
  • For input up to AC 1000A
  • Designed with a safety barrier to protect the user from being in direct contact with live conductors
  • Rated input current: 1000 A AC
  • Rated output current: 0.5 V AC
  • Accuracy (at 45 to 66 Hz) Amplitude: ± 1.0 % rdg. ±0.01 % f.s. (Full scale (f.s.) is the 3196 range value)
  • Phase: ± 1° or less
  • Frequency characteristics: 66 Hz to 5 kHz (±1 % or less from accuracy)
  • Max. allowable input: continuous 1000 A rms (45 to 66 Hz)
  • Max. circuit voltage: 600 V AC rms (insulated wire)
  • Core jaw dia.: Ø55 mm (2.17 in), 80 mm (3.15 in) × 20 mm (0.79 in) busbar
  • Dimensions: 99.5 mm (3.92 in) W × 188 mm (7.40 in) H × 42 mm (1.65 in) D
  • Mass: 590 g (20.8 oz)
  • Cord length: 3 m (9.84 ft)
