Kaye IRTD-400

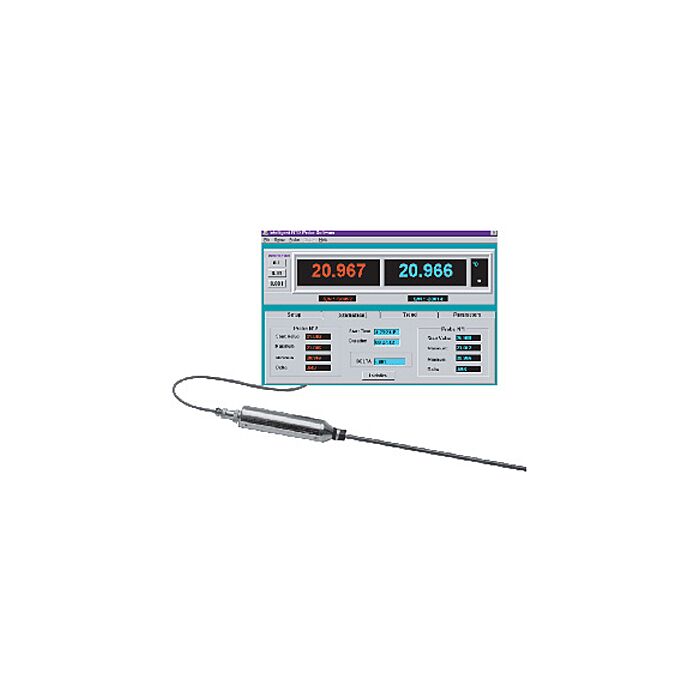

Intelligent RTD w/Software & Case(IRTD-400)

Order #: X0855

Mfg #: X0855

Questions about availability or need help? Contact Us:

(800) 633-0561
$10,135.68

Kaye IRTD-400

Intelligent RTD w/Software & Case(IRTD-400)

Order #: X0855

Mfg #: X0855

$10,135.68
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • Kaye Model # IRTD-400
  • Temperature range: -195 to 420°C
  • Accuracy: over range ±0.025°C
  • Resolution: 0.001°C
  • Sensor element: 200 Ohm Platinum sensor
  • Sheath material: Inconel™ 600
  • Immersion depth: 101.6mm (4")
  • Calibration: Traceable to NIST or PTB; Recommended calibration period: 1 year
  • Measurement rate: 30 readings per second
  • Ambient temperature range: 0 to 60°C (32 to 140°F)
  • Humidity: Humidity 0 to 95% non-condensing
  • Dimensions: Overall length: 603mm (23.75");
  • Grip: 89mm x 32mm (3.5" x 1.25")
  • Sensor sheath: 457mm x 6.35mm (18" x 0.25")
