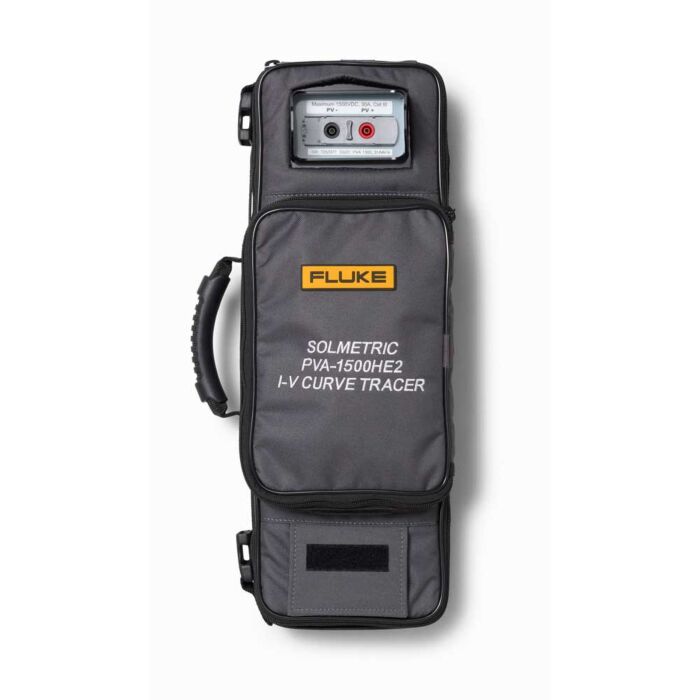

Fluke PVA-1500HE2 Solmetric PV analyzer, high efficiency IV Curve Tracer

Product Highlights

The Solmetric line of PV Analyzer I-V curve tracers are widely used in Commissioning, Auditing, O&M, and Troubleshooting of PV systems.

The PVA-1500 kit offers an array of advanced features, including high throughput I-V curve tracing, providing quick and detailed performance data. Its intuitive user interface enables easy navigation and real-time analysis, allowing for immediate identification of potential issues. By pinpointing problems early, you can maximize your solar energy production and minimize downtime.

Features

• Best accuracy
• High Efficiency
• Highest measurement throughput (# I-V measurements per hour)
• Largest display with best array troubleshooting features
• Database of 70,000 PV modules
• Measures up to 1500V at 30A
• 300 foot wireless sensor range

The Fluke Solmetric PVA-1500HE2 is an advanced I-V curve tracer designed to provide precise analysis and optimization for photovoltaic (PV) systems. The PVA-1500HE2 allows solar professionals to accurately assess the performance of PV modules, strings, and arrays in real-time, including high efficiency strings, even those with module efficiency exceeding 19%, up to a full 30A.. The PVA-1500HE2 enables users to detect issues such as shading, mismatch, degradation, and other performance anomalies swiftly and effectively. Its user-friendly interface and ergonomic design make it easy to operate, even in challenging environments. The tracer offers comprehensive data analysis and reporting features, empowering technicians to make informed decisions to maximize the efficiency and reliability of solar installations. Built with durability and reliability in mind, the Solmetric PVA-1500HE2 is the ideal tool for solar professionals seeking to optimize the performance and longevity of PV systems.

• Measures and displays I-V curves up to 1500V and 30A, including on high efficiency modules
• Built-in PV performance modeling and advanced wireless irradiance, temperature and tilt sensing
• Unprecedented measurement throughput with sweep-to-sweep delays as low as 9 seconds
• Saves time through automated data analysis and reporting, streamlining the process of obtaining and interpreting measurement results

Key Attributes

• DC Voltage: 1500V
• Current: 30A DC (Module Efficiency <19%)
• Current: 30A DC (Module Efficiency ≥19%)
• Accessories Included: PVA HE2 unit, transit case, SolSensor™ and clamp, Windows application, alligator test leads, MC4 disconnect tool, chargers, Data Analysis Tool (DAT), 2x thermocouples and adhesive disks, sensor cleaning supplies

Key Uses for this Product

• I-V Curve, I-V Curve Tracer, I-V Curve Analyzer, PV Analyzer, PVA, Irradiance, SolSensor, Photovoltaic module testing, Solar module analysis, PV module performance assessment, Solar system troubleshooting, Real-time PV diagnostics, PV module efficiency measurement, Solar panel testing equipment, Precision PV analysis, PV module maintenance, Solar system optimization, PV module data analysis, Photovoltaic system reliability, PV module quality control, Solar installation diagnostics, Solar panel performance evaluation, PV system maintenance tool, Solar module fault detection, Photovoltaic system efficiency assessment, High efficiency modules, High efficiency string measurement, High capacitance modules
• Photovoltaic (PV) Module Analysis: The PVA-1500H2E is designed specifically to measure all string types, even those with high efficiency modules, up to 30A. It allows users to assess the performance of PV modules accurately, enabling detailed analysis of factors such as shading, mismatch, degradation, and other performance anomalies.
• Real-time Troubleshooting: With its advanced features and precision measurement capabilities, the PVA-1500HE2 facilitates real-time troubleshooting of PV modules. This includes detecting issues such as shading or mismatch, allowing for swift identification and resolution of problems to ensure optimal performance of solar installations.
• Comprehensive Data Analysis: The PVA-1500HE2 offers comprehensive data analysis and reporting features, empowering technicians to make informed decisions. Users can analyze data collected by the tracer to gain insights into the efficiency and reliability of solar installations, aiding in performance optimization and maintenance planning.
• Versatile Application: The PVA-1500HE2 is suitable for use both in the field and in the lab, thanks to its intuitive interface and portable design. This versatility allows for easy testing and analysis of PV modules in various settings, providing flexibility for solar professionals in their diagnostic and maintenance tasks.
