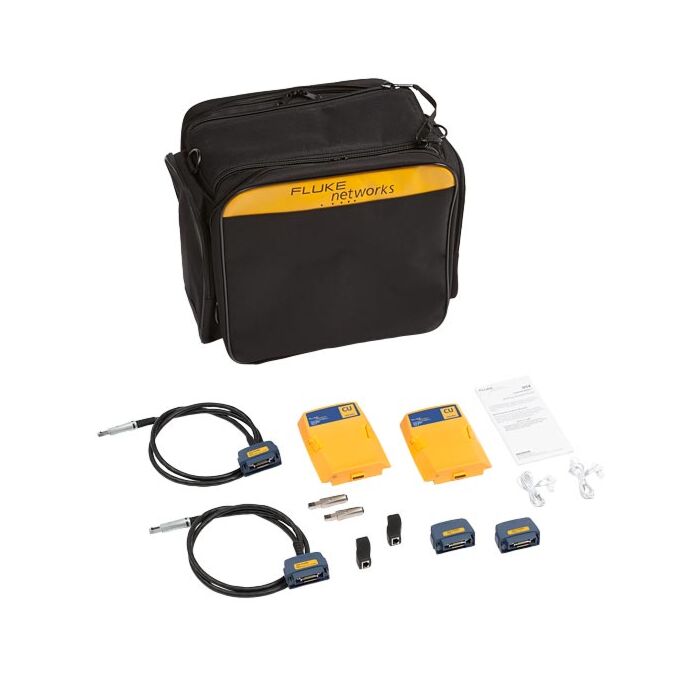

Fluke Networks DSX-8000-ADD 2GHZ CAT 8 Cable Analyzer Modules Add on Kit

Order # DSX-8000-ADD | Mfg # 4765279

$18,814.42

Ships in 2-3 weeks

The Fluke Networks Versiv family of cable testers offer modular solutions for every copper and fiber cable testing application. Check out our DSX-8000 product page to view all of your ordering options.

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States only.

Overview

Versiv™ modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
Unmatched speed for Cat 6A, 8, Class F_A, I/II and all current standards
ProjX™ system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
Taptive™ user interface simplifies set-up, and eliminates errors
Analyze test results and create professional test reports using LinkWare™ management software
Graphically displays the source of failures including crosstalk, return loss and shield faults for faster troubleshooting
Intertek Verified to TIA Level 2G – the most stringent accuracy requirement
Endorsed by cabling vendors worldwide
Built in Alien Crosstalk testing capability
Compatible with Linkware™ Live. Linkware Live enables to easily track job progress, get real-time access to test results to quickly fix problems in the field, and easily transfer and consolidate test results from the tester to LinkWare™ PC Cable Test Management Software.

Fluke Networks DSX CableAnalyzer Brochure
Fluke Networks DSX CableAnalyzer Datasheet

Copper Certification
	DSX-8000 CableAnalyzer™	DSX-5000 CableAnalyzer™
Category 6A / Class EA test time	8 seconds	10 seconds
Category 8 / Class I/II test time	15 seconds
HDTDX/HDTDR diagnostic test times	≈ 3 seconds	≈ 3 seconds
Internal memory	≈ 5,000 Cat 8 with plots ≈ 12,000 Cat 6A with plots	≈ 12,000 Cat 6A with plots
Level V Accuracy (1 GHz)	✓	✓
Level VI/2G Accuracy (2 GHz)	✓
Resistance Unbalance measurement	✓	✓
Shield integrity check	✓	✓
TCL measurement	✓	✓
ELTCTL measurement	✓	✓
CDNEXT measurement	✓	✓
CMRL measurement	✓	✓
Built in Alien XTalk module	✓	✓
Channel Adapter	2 GHz Range	1 GHz Range
Permanent Link Adapter	2 GHz Range	1 GHz Range
