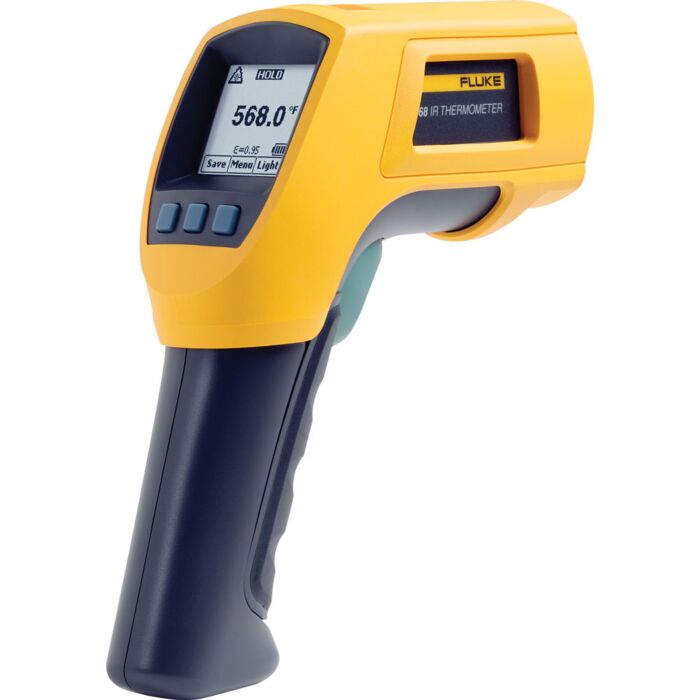

Fluke 568 IR & Contact Thermometer -40C to 800C (-40F to 1472F)

Order # 568 | Mfg # 2837806
Save 11%
$853.99
$760.05
Also Available:
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Overview

Two-in-one IR and contact thermometers with an innovative dot matrix display.

With a simple, 3-button on-screen menu interface (in 6 languages) the Fluke 568 and 566 digital laser thermometers make even complex measurements easy. Quickly navigate advanced features to adjust emissivity, start data logging, or turn on and off alarms - with just a few pushes of a button.

With a rugged, easy-to-use, ergonomic design, the Fluke 568 and 566 two-in-one contact and non contact thermometers can stand up to tough industrial, electrical, and mechanical environments. These tools go beyond other IR thermometers (or pyrometers), helping you work more efficiently in more applications.

Product Highlights

  • Easily trend and analyze data with included FlukeView® Forms software
  • Quickly download stored data with USB connection
  • See your data right away without leaving the site, using the USB and your laptop
  • Extend your battery life by powering the digital thermometer from your laptop via the USB

Each Unit Includes

  • Thermocouple K bead probe
  • Durable hard case
  • 2 AA batteries
  • Getting Started guide in 6 languages
  • USB cable
  • FlukeView® Forms software on CD
  • User’s Manual on CD in 6 languages (English, Spanish, French, German, Portuguese, and Simplified Chinese)
  • 2-year warranty

Technical Resources

Specifications

Product Specifications
Infrared temperature range -40°C to 800°C (-40°F to 1472°F)
Infrared accuracy < 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F);
> 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater
Display resolution 0.1°C / 0.1°F
Infrared spectral response 8 µm to 14 µm
Infrared response time < 500 msec
Thermocouple Type-K input temperature range -270°C to 1372°C (-454°F to 2501°F)
Thermocouple Type-K input accuracy -270°C to -40°C ±(1°C + 0.2°/1°C) (-454°F to -40°F: ±(2°F + 0.2°/1°F))
-40°C to 1372°C ±1% or 1°C (-40°F to 2501°F: ±1% or 2°F), whichever is greater
D:S (distance to measurement spot size) 50:01:00
Laser sighting Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm
Minimum spot size 19 mm (0.75 in)
Emissivity adjustment By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01
Data storage with date/time stamp 99 points
PC interface and cable USB 2.0 with FlukeView® Forms software
Hi/Low alarms Audible and two-color visual
Min/Max/Avg/Dif Yes
Display Dot matrix 98 x 96 pixels with function menus
Backlight Two levels, normal and extra bright for darker environments
Trigger lock Yes
Switchable Celsius and Fahrenheit Yes
Power 2 AA/LR6 Batteries and USB when used with a PC
Battery life If used continuously Laser and backlight on,12 hours; laser and backlight off, 100 hours
Operating temperature 0°C to 50°C (32°F to 122°F)
Storage temperature -20°C to 60°C (-40°F to 140°F)
Bead thermocouple Type-K range -40°C to 260°C (-40°F to 500°F)
Bead thermocouple Type-K accuracy ±1.1°C (2.0°F) from 0°C to 260°C (32°F to 500°F), typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F)


Visit our Fluke Thermometer Selection Guide
