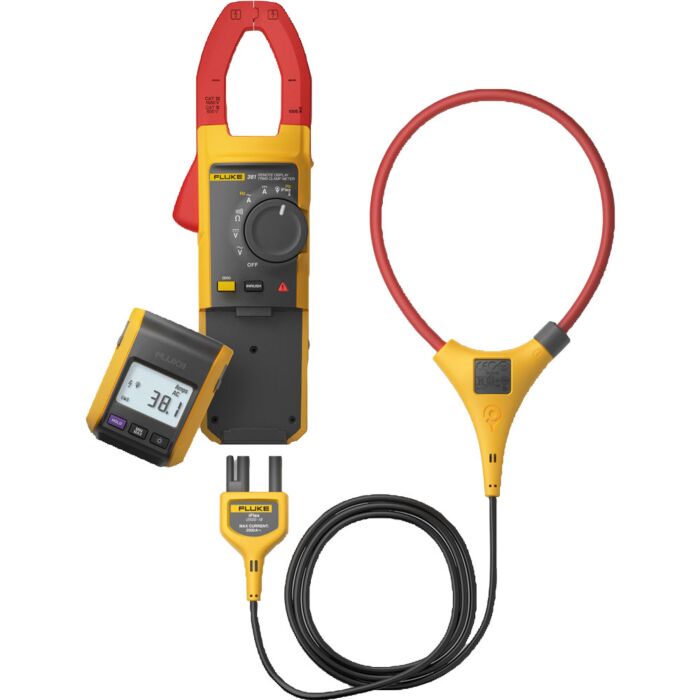

Fluke 381 Remote Display True-rms AC/DC Clamp Meter with iFlex
Remote Display True-rms AC/DC Clamp Meter w/iFlex

Order #: 381

Mfg #: 5065875

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $998.40 Regular Price $1,189.99

Fluke 381 Remote Display True-rms AC/DC Clamp Meter with iFlex

Remote Display True-rms AC/DC Clamp Meter w/iFlex

Order #: 381

Mfg #: 5065875

Special Price $998.40 Regular Price $1,189.99
Clamps provide the ideal measurement flexibility for electricians by providing all of the measurements needed, without having to reach for another tool.

Check out Transcat's Fluke Clamp Meter Selection Guide!

Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.
This item is available USED at
$783.37
Shop now
SAVE OVER $68! FREE Tools include:
  • UGLY's Electrical Reference Book
  • Fluke 1AC-A1-II Voltage Detector

Fluke 381 Overview

What Once Took Two People, Now Takes One

Now one technician can do jobs that would otherwise require two people. Clamp the Fluke 381 around a conductor, remove the display and walk across the room to operate controls or remove protective equipment, all while watching real-time readings.

The iFlex® Flexible Current Probe (included) expands the measurement range to 2500 A AC while providing increased display flexibility. With a cord that runs 6 feet, you can finally measure those tight spaces, awkward sized conductors and disorganized wires.

Fluke 381 Highlights

  • The first clamp meter with a detachable, remote display for easier, faster, safer measurements
  • 1000 A ac and dc current measurement with fixed Jaw
  • 2500 A ac current measurement with iFlex flexible current probe
  • 1000 V ac and dc voltage measurement
  • True-rms ac voltage and current for accurate measurements on non-linear signals
  • Frequency measurement to 500 Hz with both Jaw and iFlex
  • 60 kΩ resistance measurement to with continuity detection
  • Min, max, average and inrush recording to capture variations automatically
  • Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement for added flexibility without interference with measurement accuracy
  • iFlex flexible current probe expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
  • CAT IV 600V, CAT III 1000 V safety rating
  • Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings

Each Fluke 381 Includes

  • 18-inch iFlex™ flexible current probe
  • Coated instruction card
  • Safety information sheet
  • Soft carrying case
  • TL75 test leads
  • Five AA Alkaline batteries
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke PRV240
    Fluke PRV240 Battery-powered voltage source proving unit
    Battery-powered voltage source proving unit

    Order #: PRV240

    Mfg #: 4566209

    Availability:
    In stock
    Special Price $228.19 Regular Price $271.99
  2. Fluke Toolpak Meter Hanging Kit
    Fluke Toolpak Meter Hanging Kit
    Meter Hanging Kit

    Order #: TPAK80-4

    Mfg #: 1281997

    Availability:
    In stock
    Special Price $62.74 Regular Price $74.79
  3. Fluke TP1
    Fluke TP1 Slim Reach Flat Blade Probe for Fluke Lead Sets
    Slim Reach Flat Blade Probe for Fluke Lead Sets

    Order #: TP1E

    Mfg #: 650887

    Availability: Ships in 3-4 weeks
    Special Price $36.30 Regular Price $40.79
  4. Fluke TLK289
    Fluke TLK289 Industrial Master Test Lead Set
    Industrial Master Test Lead Set

    Order #: TLK289

    Mfg #: 3045646

    Availability:
    In stock
    Special Price $290.48 Regular Price $326.39
  5. Fluke TL75
    Fluke TL75 Hard Point Test Lead Set
    Hard Point Test Lead Set

    Order #: TL75

    Mfg #: 855705

    Availability:
    In stock
    Special Price $44.77 Regular Price $50.31
  6. Fluke I2500-10 iFlex Flexible Current Probe, 10"
    Fluke I2500-10 iFlex Flexible Current Probe, 10"
    iFlex Flexible Current Probe 10 inch

    Order #: I-2500-10

    Mfg #: 3676410

    Availability:
    In stock
    Special Price $278.38 Regular Price $312.79
  7. Fluke C437-II Hard Case for 430 Series II with Rollers
    Fluke C437-II Hard Case for 430 Series II with Rollers
    Hard Case for 430 Series II w/Rollers

    Order #: C437-II

    Mfg #: 4116743

    Availability: Ships in 3-4 weeks
    $1,497.35
  8. Fluke C550
    Fluke C550 Premium Tool Bag - Water Resistant
    Premium Tool Bag

    Order #: C550E

    Mfg #: 1547919

    Availability:
    In stock
    Special Price $157.88 Regular Price $183.59
  9. Fluke AC220 SureGrip Alligator Clips
    Fluke AC220 SureGrip Alligator Clips
    SureGrip Alligator Clips

    Order #: AC20

    Mfg #: 1610103

    Availability:
    In stock
    Special Price $76.01 Regular Price $88.39
  10. Fluke AC87 Heavy Duty Bus Bar Clip Set
    Fluke AC87 Heavy Duty Bus Bar Clip Set
    Heavy Duty Bus Bar Clip Set

    Order #: AC87

    Mfg #: 1278079

    Availability: Ships in 3-4 weeks
    Special Price $73.67 Regular Price $85.67
  11. Fluke AC89
    Fluke AC89 Insulation Piercing Clip
    Insulation Piercing Clip

    Order #: AC89

    Mfg #: 873448

    Availability:
    In stock
    Special Price $72.50 Regular Price $84.31
  12. Fluke C781
    Fluke C781 Soft Carrying Case
    Soft Carrying Case

    Order #: C781

    Mfg #: 619988

    Availability:
    Item Discontinued
    $130.14
  13. Fluke AC285 SureGrip Alligator Clips
    Fluke AC285 SureGrip Alligator Clips
    SureGrip Alligator Clips

    Order #: AC285

    Mfg #: 1610159

    Availability:
    In stock
    Special Price $52.62 Regular Price $61.19
  14. Fluke TL238
    Fluke TL238 SureGrip Test Lead Set for High Energy Environments
    SureGrip Test Lead Set for High Energy Environments

    Order #: TL238

    Mfg #: 2132831

    Availability:
    In stock
    Special Price $139.18 Regular Price $156.39
  15. Fluke C345 Soft Carrying Case, Polyester, Black/Yellow
    Fluke C345 Soft Carrying Case, Polyester, Black/Yellow
    Soft Carrying Case, Polyester,Black/Yellow

    Order #: C345

    Mfg #: 3311173

    Availability:
    In stock
    Special Price $148.53 Regular Price $172.71
  16. Fluke TL224 SureGrip Silicon Test Leads
    Fluke TL224 SureGrip Silicon Test Leads
    SureGrip Silicon Test Leads

    Order #: TL24

    Mfg #: 1610198

    Availability:
    In stock
    Special Price $53.24 Regular Price $59.83
  17. Fluke TL175 TwistGuard Test Leads
    Fluke TL175 TwistGuard Test Leads
    TwistGuard Test Leads

    Order #: TL175

    Mfg #: 3521976

    Availability:
    In stock
    Special Price $55.66 Regular Price $62.55
  18. Fluke L206
    Fluke L206 Deluxe LED Hat Light
    Deluxe LED Hat Light

    Order #: L206

    Mfg #: 2098595

    Availability: Ships in 3-4 weeks
    Special Price $87.57 Regular Price $95.19
  19. Fluke TL223 SureGrip Electrical Test Lead Set with TP1 Test Probe
    Fluke TL223 SureGrip Electrical Test Lead Set with TP1 Test Probe
    SureGrip Electrical Test Lead Set w/TP1 Test Probe

    Order #: TL223

    Mfg #: 2003633

    Availability:
    In stock
    Special Price $133.13 Regular Price $149.59
  20. Fluke C33
    Fluke C33 Soft Carrying Case, Vinyl, Black/Yellow
    Soft Carrying Case,Vinyl, Black/Yellow

    Order #: C33

    Mfg #: 1664120

    Availability:
    In stock
    Special Price $64.31 Regular Price $74.79
  21. Fluke C1600 Gear Box for Meter and Accessories
    Fluke C1600 Gear Box for Meter and Accessories
    Gear Box for Meter and Accessories

    Order #: C1600

    Mfg #: 2091049

    Availability: Ships in 3-4 weeks
    Special Price $136.83 Regular Price $159.11
  22. Myron L Company TP1
    Myron L Company TP1
    Conductivity/TDS/Temperature Meter,TechPro II

    Order #: TP1

    Mfg #: TP1

    Availability: Ships in 3-4 weeks
    Special Price $1,186.89 Regular Price $1,290.10
AC Current via Jaw
Range 999.9 A
Resolution 0.1 A
Accuracy 2% ± 5 digits (10-100 Hz)
5% ± 5 digits (100-500 Hz)
Crest Factor (50/60 Hz) 3 @ 500 A
2.5 @ 600 A
1.42 @ 1000 A
Add 2% for C.F. > 2
AC Current via Flexible Current Probe
Range 999.9 A / 2500 A (45 Hz – 500 Hz)
Resolution 0.1 A / 1 A
Accuracy 3% ± 5 digits
Crest Factor (50/60 Hz) 3.0 at 1100 A
2.5 at 1400 A
1.42 at 2500 A
Add 2% for C.F. > 2
Distance from Optimum
  i2500-10 Flex i2500-18 Flex Error
A 0.5 in (12.7 mm) 1.4 in (35.6 mm) ±0.5%
B 0.8 in (20.3 mm) 2.0 in (50.8 mm) ±1.0%
C 1.4 in (35.6 mm) 2.5 in (63.5 mm) ±2.0%
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range 999.9 A
Resolution 0.1 A
Accuracy 2% ± 5 digits
AC Voltage
Range 600 V /1000 V
Resolution 0.1 V / 1 V
Accuracy 1.5% ± 5 digits (20 – 500 Hz)
DC Voltage
Range 600.0 V /1000 V
Resolution 0.1 V / 1 V
Accuracy 1% ± 5 digits
Frequency – Via Jaw
Range 5.0 – 500.0 Hz
Resolution 0.1 Hz
Accuracy 0.5% ± 5 digits
Trigger Level 5 – 10 Hz, ≥ 10 A
10 – 100 Hz, ≥ 5 A
100 – 500 Hz, ≥ 10 A
Frequency via Flexible Current Probe
Range 5.0 to 500.0 Hz
Resolution 0.1 Hz
Accuracy 0.5% ± 5 digits
Trigger Level 5 to 20 Hz, ≥ 25 A
20 to 100 Hz, ≥ 20 A
100 to 500 Hz, ≥ 25 A
Resistance
Range 600 Ω/6 kΩ/60 kΩ
Resolution 0.1 Ω/1 Ω/10 Ω
Accuracy 1% ± 5 digits
Mechanical Specifications
Size (L x W x H) 277 x 88 x 43 mm (55 mm for remote unit)
Weight 350 g
Jaw Opening 34 mm
Flexible Current Probe Diameter 7.5 mm
Flexible Current Probe Cable Length 1.8 m
(head to electronics connector)
Environmental Specifications
Operating Temperature -10°C to +50°C
Storage Temperature -40°C to +60°C
Operating Humidity Non condensing (< 10°C)
≤ 90% RH (at 10°C to 30°C)
≤ 75% RH (at 30°C to 40°C)
≤ 45% RH (at 40°C to 50°C)
(Without Condensation)
Operating Altitude 2,000 meters
Storage Altitude 12,000 meters
EMI, RFI, EMC, RF EN 61326-1:2006, EN 61326-2-2:2006
ETSI EN 300 328 V1.7.1:2006
ETSI EN 300 489 V1.8.1:2008
FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249
FCCID: T68-F381
RSS-210 IC: 6627A-F381
Temperature Coefficients Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C
Wireless Frequency 2.4 GHz ISM Band 10 meter range
Safety Compliance ANSI/ISA S82.02.01:2004
CAN/CSA-C22.2 No. 61010-1-04
IEC/EN 61010-1:2001 to 1000V CAT III, 600V CAT IV.
Double Insulation Clearance Per IEC 61010-2-032
Double Insulation Creepage Per IEC 61010-1


Visit our Fluke Clamp Meter Selection Guide
