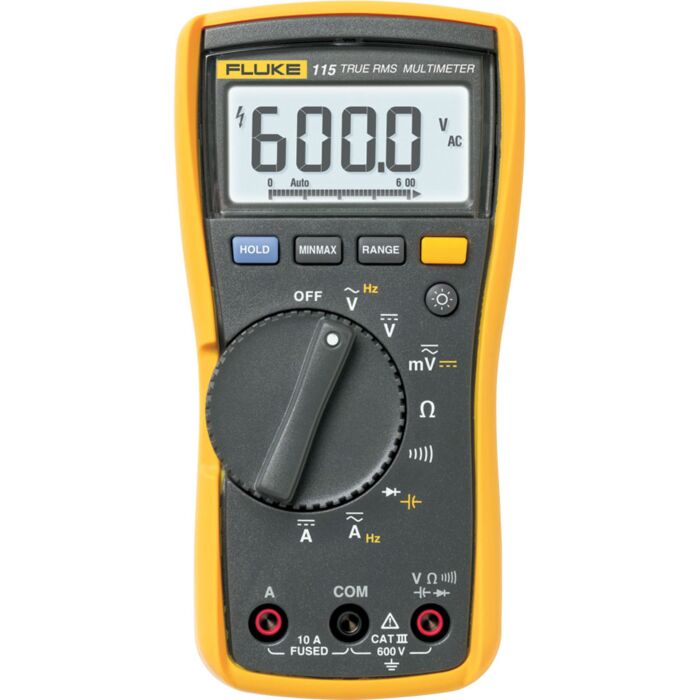

Fluke 115 True-RMS Multimeter

Order # 65164MM | Mfg # 2538790

Fluke 115 Handheld True-RMS Multimeter: Measures Up To 10A

Save 11%

$391.99

$348.87

In stock

Check out Transcat's Fluke Digital Multimeter Selection Guide!

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

The Intelligently Designed Solution for Field Service Technicians

With its simple operation, compact design and ease of use, the Fluke 115 True RMS digital multimeter provides the perfect answer for general purpose electrical and electronic test requirements. The Fluke 115 displays True RMS voltage and current readings with 600 count resolution, continuity and capacitance, making it perfect for quick verifications and field service use.

Fluke 115 Digital Multimeters are independently tested for safe use in CAT III 600V Environments.

Product Highlights

Resistance, continuity, frequency, capacitance, and diode test
Measures 10 A (20 A overload for 30 seconds)
Large white LED backlight to work in poorly lit areas
Compact ergonomic design for one-handed operation
Compatible with optional magnetic hanger (ToolPak™)
True-rms for accurate measurements on non-linear loads
Min/Max/Average with elapsed time to record signal fluctuations
CAT III 600 V safety rated

Each Unit Includes

Holster
Installed 9 V battery
TL 75 Test leads
User manual

Webinars

Electrical Safety Measurement Webinar with Fluke

Technical Resources

Application - Troubleshooting Power Harmonics
Application - Who Sets the Rules for Electrical Testing and Safety
Fluke 115 True RMS Digital Multimeter - Technical Data
Fluke 114 / 115 / 116 / 117 Digital Multimeter - Calibration Information
Fluke 114 / 115 / 116 / 117 Digital Multimeter - Calibration Information Supplement
Fluke 114 / 115 / 116 / 117 Digital Multimeter - Specifications
Fluke 114 / 115 / 117 Digital Multimeter - User's Manual
Fluke 114 / 115 / 117 Digital Multimeter - User's Manual Supplement
Fluke 113 / 114 / 115 / 116 / 117 Digital Multimeter - CE Declaration of Conformity
Fluke 113 / 114 / 115 / 116 / 117 Digital Multimeter - CSA Certificate of Conformity
Fluke 113 / 114 / 115 / 116 / 117 Digital Multimeter - TUV SUD Certificate of Conformity
Fluke 113 / 114 / 115 / 116 / 117 Digital Multimeter - Statement of Memory Volatility
Brochure - Fluke 114 / 115 / 116 / 117 Digital Multimeter - Conversion Chart
Application - ABCs of Multimeter Safety: Multimeter Safety and You
Fluke - Electrical Safety Measurement Webinar

Specifications

Specifications
Maximum voltage between any terminal and earth ground	600 V
Surge protection	6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2
Display	Digital: 6,000 counts, updates 4 per second
Bar graph	33 segments, updates 32 per second
Operating temperature	-10°C to + 50°C
Storage temperature	-40°C to + 60°C
Battery type	9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery life	400 hours typical, without backlight
Accuracy Specifications
DC millivolts	Range/resolution	600.0 mV / 0.1 mV
	Accuracy	± ([% of reading] + [counts]): 0.5% + 2
DC volts	Range/resolution	6.000 V / 0.001 V
		60.00 V / 0.01 V
		600.00 V / 0.1 V
	Accuracy	± ([% of reading] + [counts]): 0.5% + 2
AC millivolts¹ True RMS	Range/resolution	600.0 mV / 0.1 mV
	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz)
		2.0% + 3 (500 Hz to 1 kHz)
AC volts¹ True RMS	Range/resolution	6.000 V / 0.001 V
		60.00 V / 0.01 V
		600.0 V / 0.1 V
	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz)
		2.0% + 3 (500 Hz to 1 kHz)
Continuity	Range/resolution	600 Ω / 1 Ω
	Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of
		500 μs or longer.
Ohms	Range/resolution	600.0 Ω / 0.1 Ω
		6.000 kΩ / 0.001 kΩ
		60.00 kΩ / 0.01 kΩ
		600.0 kΩ / 0.1 kΩ
		6.000 MΩ / 0.001 MΩ
	Accuracy	0.9% + 1
	Range/resolution	40.00 MΩ / 0.01 MΩ
	Accuracy	5% + 2
Diode test	Range/resolution	2.00 V / 0.001 V
	Accuracy	0.9% + 2
Capacitance	Range/resolution	1000 nF / 1 nF
		10.00 μF / 0.01 μF
		100.0 μF / 0.1 μF
		9999 μF / 1 μF
		100 μF to 1000 μF
	Accuracy	1.9% + 2
	Range/resolution	> 1000 μF
	Accuracy	5% + 20%
Lo-Z capacitance	Range	1 nF to 500 μF
	Accuracy	10% + 2 typical
AC amps True RMS	Range/resolution	6.000 A / 0.001 A
(45 Hz to 500Hz)		10.00 A / 0.01 A
	Accuracy	1.5% + 3
		20 A overload for 30-seconds max
DC amps	Range/resolution	6.000 A / 0.001 A
		10.00 A / 0.01 A
	Accuracy	1.0% + 3
		20 A overload for 30-seconds max
Hz (V or A input)2	Range/resolution	99.99 Hz / 0.01 Hz
		999.9 Hz / 0.01 Hz
		9.999 kHz / 0.001 kHz
		50 kHz / 0.01 kHz
	Accuracy	0.1% + 2
1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.
2. Frequency is AC coupled, 5Hz to 30 kHz for AC voltage.
2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.
2. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.
2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
Mechanical & General Specifications
Size	167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight	550 g
Warranty	3 years
