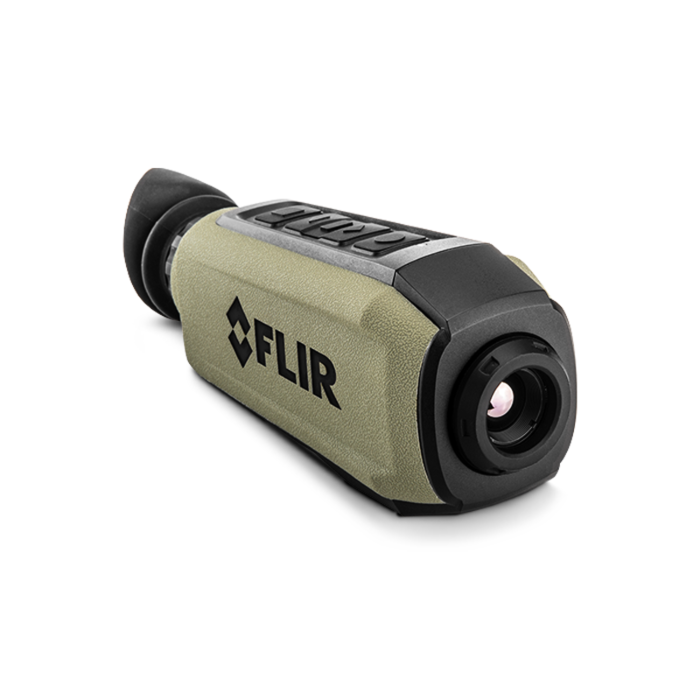

FLIR SCION OTM266 Outdoor Thermal Monocular 640x 480, 60Hz, 18mm, 24deg, Green

FLIR SCION OTM266 Outdoor Thermal Monocular, 640x 480, 60Hz, 18mm, 24 degree, Green

Order # SCION-OTM266

Mfg # 7TM-01-F230

call-regular 800-828-1470
$4,723.50
  • Overview
  • Technical Resources
  • Specifications
  • Accessories

FLIR SCION OTM266 Outdoor Thermal Monocular, 640x 480, 60Hz, 18mm, 24 degree, Green

Order # SCION-OTM266 | Mfg # 7TM-01-F230
$4,723.50

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

SCION OTM266 - Thermal monocular 640x480-12um-60Hz, 18mm-24°, Green

The FLIR Scion® OTM captures clear thermal imaging and leverages a refined user interface to quickly detect objects of interest in complete darkness and through glaring light or haze. Built around FLIR's powerful Boson core, the Scion OTM produces 9 or 60 Hz thermal imaging and records geotagged video and still images for playback long after the day is done. A rugged, IP67-rated housing and intuitive controls allow single-hand operation in harsh weather conditions, maintaining reliable thermal imaging in the most demanding outdoor environments.

  • ONBOARD VIDEO AND IMAGE RECORDING: Revisit every wildlife encounter in sharp thermal imaging with internal and microSD® expandable memory
  • REDESIGNED USER INTERFACE: Polished menus allow quick thermal palette adjustments and provide easy access to new features such as picture-in-picture zoom, video recording, and GPS functionality.
  • TRUSTED THERMAL DETECTION: The advanced image processing of FLIR's Boson® thermal core and a vivid OLED display offer superb, unwavering vision in challenging environments.

Each Unit Includes

  • SCION
  • Battery tray
  • 6xCR123
  • USB-C cable

Please Note: Thermal Imaging Cameras are classified by the U.S. Department of Commerce as "dual use" instruments. Transcat is authorized to sell these instruments only in the United States and Canada. Diversion contrary to U.S. law is prohibited. To ensure that Thermal Imagers sold by Transcat do not go outside the US or Canada, we require a Dual Use Instrument End-User Certification Form to be filled out at time of purchase.

Technical Resources

Specifications

General
Image Capture Yes
Overview
Detector Type 640 x 512
Display Quad-VGA (1280x960) High definition display
Internal Memory 2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)
Size 239 x 76.8 x 60.5 mm (9 x 3 x 2.4 in)
Weight Without Batteries: 452 g; With Batteries 572 g
System Overview
Color (housing) Green / Black
Core Technology BOSON 12 µm Vox Microbolometer
Display Focus Manual
Eye Relief 16 mm
Lens System 18 mm
Optical Magnification 1x
Connections & Communications
Bluetooth BLE 4.1+
Geo Positioning [GPS] Yes
USB USB-C; Power In; Video Out; Video and Image File Transfer
Video Recording Yes
WiFi Video Streaming, File Transfer
Environmental
Mounting ¼-20 Tripod Mount
Imaging & Optical
Detection Range Performance [1.8 m man] 710 m
Digital Zoom 1X | 2X | 4X | 8X
Field of View 24° x 18°
Focus
Refresh Rate 60 Hz
Meter Data
Auto Power Off Yes
Power
Battery Life Up to 4.5 hours at 20°C
Battery Type 6x CR123A 3V Lithium Battery
UI-UX
Accelerometer Yes
DateTime Stamp Yes
Magnetic Compass Yes
Picture While Recording Yes
Real Time Clock Yes
Temperature Imaging Modes White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava
Viewing Modes Scouting, Picture-in-Picture
