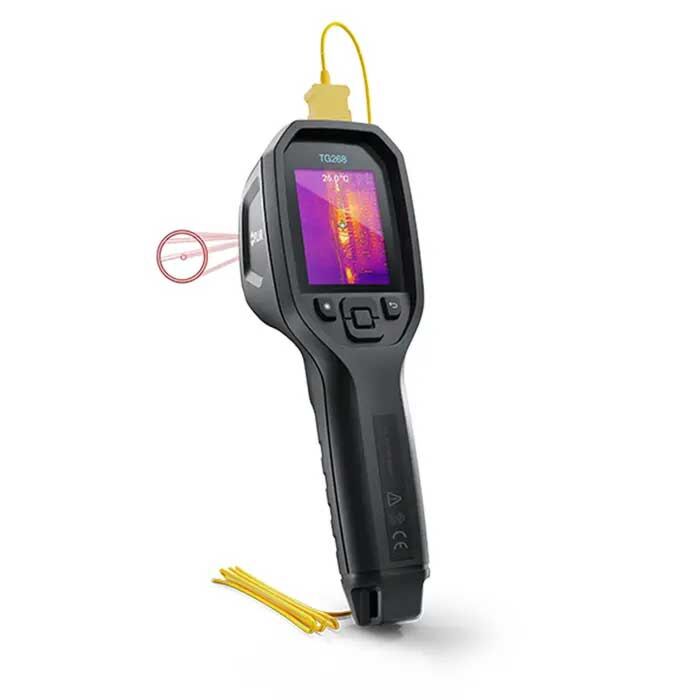

FLIR TG268 Spot Thermal Camera 160x120 with MSX

Accurately measure temperatures up to 400°C (752°F) with the TG268 and 1080°C (1976°F) with the TG298
Quickly locate problems with FLIR-patented MSX® image enhancement for added detail and super resolution for upscaling thermal images to 320 x 240
Capture readings, images, and videos for analysis and sharing with the FLIR METERLiNK® app
Rugged IP54 rating and 2 m ( 6 ft ) drop tested with bright LED flashlight and Type K thermocouple (*TG268 only)

Inspecting electrical, mechanical, and automotive equipment
Monitoring equipment for signs of degradation before it fails
Ensuring energy efficiency in building inspections
Conducting process manufacturing and quality assurance checks on high-temperature applications at safe distances

Flashlight: Bright LED flashlight
Laser Pointer: Class 1 bullseye laser visually highlights the measurement area; button-activated
Storage Media: eMMC 8 GB
Image Storage Format: JPEG with spot temperature
Interfaces: USB 2.0, BLE
Bluetooth: Yes
METERLiNK Enabled: Yes
Certifications: CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan
Drop Test: 2 m (6 ft)
IP Rating: IP54
Operating Temperature Range: -10°C to 45°C (14°F to 113°F)
Storage Temperature Range: -30°C to 55°C (-22°F to 131°F)
Tripod Mounting: 1/4 in. -20 on bottom of handle
