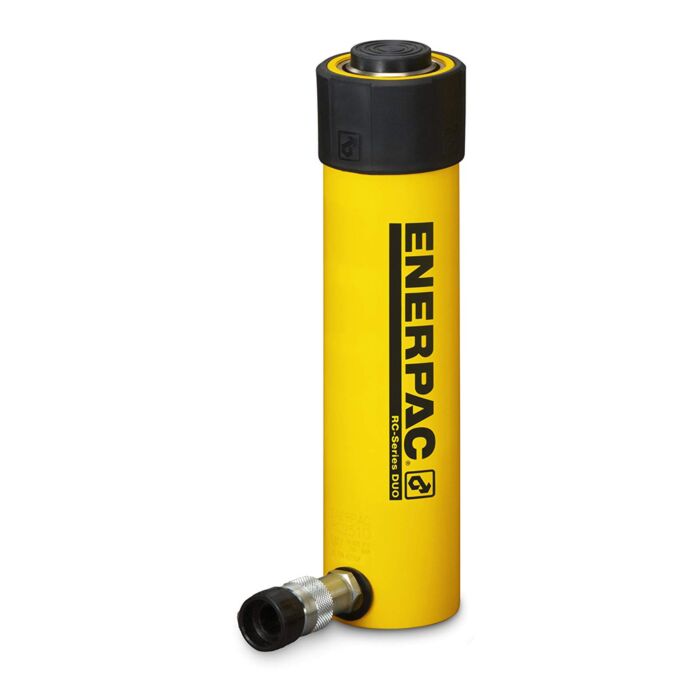

Enerpac RC256 25-Ton Cylinder, S/A

Order # RC-256 | Mfg # RC256
$1,806.09
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • Unique GR2 Bearing Design, reduces wear, extending life
  • Base mounting holes enable easy fixturing
  • Designed for use in all positions
  • High strength alloy steel for durability
  • Redesigned cylinder thread protector for ease of use
  • Heavy-duty, pretensioned spring improves retraction speed
  • Baked enamel finish for increased corrosion resistance
  • CR-400 coupler and dust cap included on all models
  • Plunger wiper reduces contamination, extending

Technical Resources

Specifications

Cylinder capacity 25 tons (25.8 maximum)
Stroke length 6.25 inches
Effective area 5.16 square inches
Oil capacity 32.23 cubic inches
Cylinder bore diameter 2.56 inches
Collapsed height 10.75 inches
Extended height 17.00 inches
Outside diameter 3.38 inches
Weight 22 lb.
