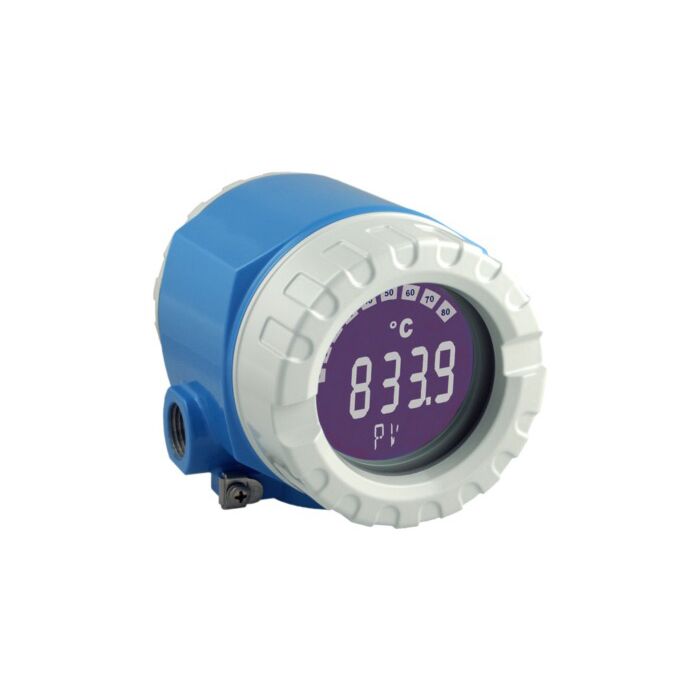

Endress+Hauser iTEMP TMT162 Temperature Field Transmitter

Overview

High reliability in harsh industrial environments due to dual compartment housing and compact, fully potted electronics
Backlit display with large measured value, bargraph and status condition indication
Diagnostics information according to NAMUR NE 107
Reliable operation due to sensor monitoring: breakdown information, sensor backup, drift alarm and corrosion detection
High measuring point accuracy due to sensor transmitter matching
Mathematical functions for differential and average temperature add flexibility to the measurement
Optional: stainless steel housing for hygienic or Ex d application

Universal input usable for resistance thermometer (RTD), thermocouple (TC), resistance thermometer (Ω), voltage transmitters (mV)
HART® protocol for converting various input signals to a scalable 4 to 20 mA analog output signal. Operating the transmitter using handheld terminals Field Xpert SFX100, DXR275/375/475 or remotely via PC
FOUNDATION Fieldbus™ ITK 6.1.2
PROFIBUS® PA Profile 3.02
Optional: stainless steel housing for hygienic or Ex d application

Endress+Hauser Omnigrad S TMT162R Technical Information
Endress+Hauser iTEMP TMT162 Technical Information
Endress+Hauser iTEMP TMT162 Profibus Operating Instructions
Endress+Hauser iTEMP TMT162 Fieldbus Operating Instructions
Endress+Hauser iTEMP TMT162 HART Operating Instructions
Endress+Hauser iTEMP TMT162 datasheet

Temperature Transmitters
Measuring Principle	Resistance Temperature Detector
Input	2 x RTD, TC, Ohm, mV
Output	4...20 mA HART FOUNDATION Fieldbus H1 PROFIBUS PA
Auxiliary power supply	HART: 10,5...40 V DC Ex ia: 10,5...30 V DC FOUNDATION Fieldbus: 9...32 V DC Ex ia: 10,5...24 V DC PROFIBUS PA: 9...32 V DC Ex ia: 10,5...24 V DC
Communication	HART-protocol FOUNDATION Fieldbus PROFIBUS PA
Installation	in field
Accuracy	(Pt100, -50...200 °C) <= 0,15 K (HART) (Pt100, -58...392 °F) <= 0,3 °F (HART) (Pt100) <= 0,1 K (FF, PA) (Pt100) <= 0,18 °F (FF, PA)
Galvanic isolation	yes
Certification	UL rec. Comp (HART) FM IS, NI I/1+2/ABCD CSA IS, NI I/1+2/ABCD ATEX II1G Ex ia IIC T6 ATEX II2G Ex d IIC T6 ATEX II3G Ex nA IIC T6 ATEX II3G Ex ic IIC T6 ATEX IECEx II2D Ex tb IIIC Db ATEX II1G Ex ia IIC T6, II2D Ex ia IIIC FM XP, NI, DIP I,II,III/1+2/A-G CSA XP, NI, DIP I,II,III/1+2/A-G FM XP, DIP, IS, NI I,II,III/1+2/A-G CSA XP, DIP, IS, NI I,II,III/1+2/A-G FM+CSA XP,DIP, IS, NI I,II,III/1+2/A-G CSA General Purpose IECEx Ex ia IIC T6 Ga IECEx Ex d IIC T6 Gb IECEx Ex ia, Ex d NEPSI Ex ia IIC T4-T6 NEPSI Ex nA II T4-T6 NEPSI Ex d IIC T4-T6 TIIS Ex ia IIC T4 TIIS Ex ia IIC T6 TIIS Ex d IIC T6 marine approval only for HART-protocol SIL2 only for HART-protocol

Thermometer
Measuring Principle	Resistance Temperature Detector
Certification	UL rec. Comp (HART) CSA GP ATEX FM CSA TIIS NEPSI IECEx
