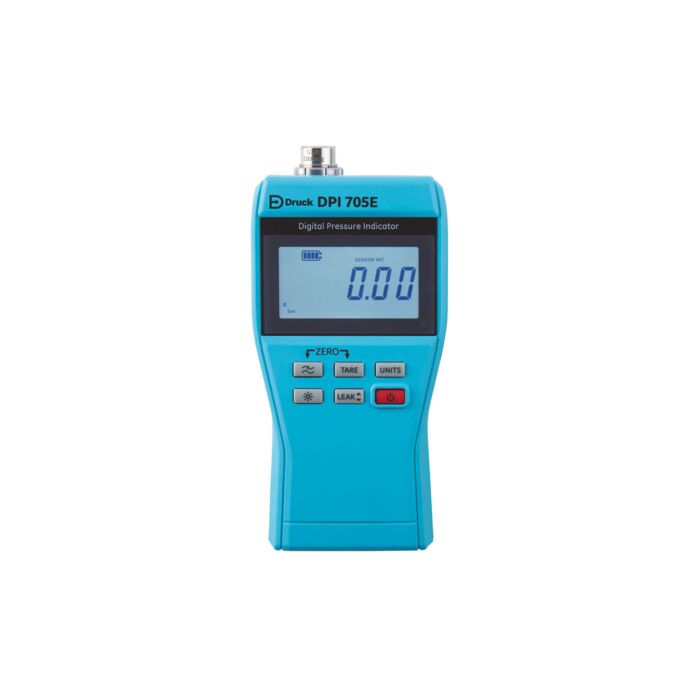

Druck DPI705E Pressure Indicator, 25mbar/10inH2O, 2.5 kPa, Gauge
Press Indicator 25mbar/10inH2O 2.5 kPa Gauge G1/8 BSP Female

Order #: DPI705E-1-008G-P1-H0-U0-OP0

Mfg #: DPI705E-1-008G-P1-H0-U0-OP0

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $1,027.56 Regular Price $1,116.92

Druck DPI705E Pressure Indicator, 25mbar/10inH2O, 2.5 kPa, Gauge

Press Indicator 25mbar/10inH2O 2.5 kPa Gauge G1/8 BSP Female

Order #: DPI705E-1-008G-P1-H0-U0-OP0

Mfg #: DPI705E-1-008G-P1-H0-U0-OP0

Special Price $1,027.56 Regular Price $1,116.92
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

Druck DPI 705E Pressure Indicator with Internal Sensor

  • Unit is configured with:
    • Model Type: DPI705E : Safe Area Pressure Indicator
    • Accuracy: 1 : Standard
    • Pressure Range and Reference Type : 008G : 25 mbar / 10 inH2O / 2.5 kPa
    • Pressure Fitting : P1 : G1/8 BSP Female
    • Hazardous Area Approvals : H0 : No Hazardous Area Approval
    • Pressure Units : U0 : All Pressure Units
    • Options : OP0 : No Option Required
  • Ranges 0 to 25 mbar through to 700 bar (0 to 10 inH2O through to 10,000 psi) with internal sensor
  • Optional external sensor 0 to 25 mbar through to 1400 bar (0 to 10 inH2O through to 20,000 psi)
  • 48 total pressure ranges
  • Gauge, Absolute, and Differential choices
  • 19 programmable pressure units such as psi, inH2O, bar, inHg
  • Optional negative calibration for vacuum
  • Impact resistant, Rugged, lightweight handheld design
  • Leak test, tare, min/max, alarm, and filter
  • Optional remote RTD temperature sensors

DPI 705E Series Druck Handheld Pressure Indicators

The Druck DPI 705E Series of handheld pressure and optional temperature indicators combine tough and rugged design with accurate and reliable measurements. Compact and robust, the DPI 705E Series is designed for single handed operation and provides many essential features required for routine maintenance and system troubleshooting.

DPI 705E Improves Test Efficiency
  • Power on and use. No warm up time required.
  • 19 pressure measurement units (See below)
  • 1, 3 or 5 minute leak test
  • Impact resistant, sealed to IP54
  • Large digit high-contrast LCD with backlight
  • Optional carrying case with belt loop
  • Optional magnetic/loop hanging strap
  • Long battery life
  • Integral desk stand and hanger
Special Features Pressure Units
  • mbar, bar, Pa, hPa, Pa, MPa, psi , lb/ft2, kgf/cm2, kgf/m2, mmHg(0°C), mHg(0°C),  inHg 0, mmH2O, cmH2O, mH2O, inH2O (4°C, 20°C), ftH2O (4°C, 20°C)
Calibration Certificates
  • Supplied as standard with bar, psi and kPa
  • Optional UKAS approved calibrations available
Zero

Zero pressure correction (gauge/differential sensors)

Tare

0 to 100% FS temporary zero offset capability by subtracting the current reading from subsequent measurements.

Filter

Enables a filtered pressure reading by showing a rolling average of the last 10 measurements. Providing a more stable reading of a noisy measurement.

Alarm

User adjustable; high and low pressure alarms with visual (Bell Icon, Pressure Reading and Backlight flash) and audible warning for 60 seconds.

Calibration

Used in conjunction with the optional pneumatic or hydraulic hand pumps, the DPI 705E Series provides a simple, low-cost calibration solution.

  1. Druck IO705E-CASE DPI705E Carrying Case
    Druck IO705E-CASE DPI705E Carrying Case
    DPI705E Carrying Case

    Order #: IO705E-CASE

    Mfg #: IO705E-CASE

    Availability:
    In stock
    Special Price $63.49 Regular Price $69.02
  2. Druck IO705E-STRAP DPI705E Hanging Strap
    Druck IO705E-STRAP DPI705E Hanging Strap
    DPI705E Hanging Strap

    Order #: IO705E-STRAP

    Mfg #: IO705E-STRAP

    Availability:
    In stock
    Special Price $63.49 Regular Price $69.02
  3. Druck IO-ADAPT-QF G1/8M to Quick-fit Adaptor
    Druck IO-ADAPT-QF G1/8M to Quick-fit Adaptor
    G1/8M to Quick-fit Adaptor

    Order #: IO-ADAPT-QF

    Mfg #: IO-ADAPT-QF

    Availability: Ships in 3-4 weeks
    Special Price $99.69 Regular Price $108.36
General Specifications
Working Pressure 110% FS (alarm active beyond this range)
Sealing IP54
Operating temperature -10 to 50°C (14 to 122°F)
Storage temperature -20 to 70°C (-4 to 158°F)
Humidity 0 to 90% RH non condensing
Shock and vibration MIL-PRF-28800F for Class II equipment.1 m Drop Tested @ -20°C (-4°F)
EMC BS EN 61326-1
Electrical safety BS EN 61010-1, UL 61010-1
Pressure safety Pressure equipment directive class SEP. UL61010, Safe to 2xFS
Approval CE marked, RCM
Size and weight L 200 mm, W 95 mm, D 43 mm, 563 g maximum
RoHS Compliant
Media Compatibility Media to be compatible with Stainless Steel and Hastelloy
Resolution 5 digits
