Druck DPI610E
Portable Pressure Calibrator

Order #: DPI610E

Mfg #: DPI610E

Questions about availability or need help? Contact Us:

(800) 633-0561
$5,732.50

Druck DPI610E

Portable Pressure Calibrator

Order #: DPI610E

Mfg #: DPI610E

$5,732.50

Currently a configured instrument on this page is sold at list price. Add to quote to receive your Transcat customer pricing.

Availability:
In stock

Choose Your Options:

Product Highlights

The DPI610E is the latest addition to Druck's proven DPI600 Series. Druck's new pressure calibrator combines effortless pressure measurement and generation, signal measurement and loop power with significantly improved pump capabilities and a powerful touch and button user interface.

The "iconic Druck" design of the DPI610E has been engineered for instrument technicians, using input from those working in the field. Using Druck's in-house sensor technology, the DPI610E offers total 1 year uncertainty down to 0.025% FS over a wide temperature range. Available in commercial and intrinsically safe versions, the DPI610E is an ideal solution for your test and calibration application.



Features

  • The complete pressure calibration tool provides pressure:
    • Vacuum to 35 bar/500 psi/3.5 MPa pneumatic pressures with inbuilt barometer for accurate pseudo pressure measurements
    • Up to 1000 bar/15000 psi/100 MPa hydraulic pressures
  • HART as standard on all versions
  • Best in class pressure accuracy: Total 1 year uncertainty down to 0.025% full scale (FS) over temperature range of -10°C to +50°C
  • Integral calibration record with calibration due countdown
  • Robust, handheld design with backlit high-contrast display
  • Hazardous area (Intrinsically safe) version available
  • Optional remote plug and play pressure sensor (PM700E) and Resistance Temperature Detector (RTD-INTERFACE)
  • Minimise in-the-field leaks with quick-fit pressure adapters and hoses
  • Full data logging and local documenting capabilities included
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Druck IO610E-CAR-CHARGER DPI610E Car Charger Cable (12V)
    Druck IO610E
    DPI610E Car Charger Cable (12V)

    Order #: IO610E-CAR-CHARGER

    Mfg #: IO610E-CAR-CHARGER

    Availability: Ships in 3-4 weeks
    Special Price $35.29 Regular Price $38.36
  2. Druck IO610E-CASE DPI610E Carrying Case (All variants)
    Druck IO610E
    DPI610E Carrying Case (All variants)

    Order #: IO610E-CASE

    Mfg #: IO610E-CASE

    Availability: Ships in 3-4 weeks
    Special Price $282.07 Regular Price $306.60
  3. Druck IO610E-USB-CABLE DPI610E USB A-B Cable 2m
    Druck IO610E
    DPI610E USB A-B Cable 2m

    Order #: IO610E-USB-CABLE

    Mfg #: IO610E-USB-CABLE

    Availability: Ships in 3-4 weeks
    Special Price $14.10 Regular Price $15.33
  4. Druck IO610E-PSU DPI610E Mains PSU 15Vdc 2A 2.5mm Coax
    Druck IO610E
    DPI610E Mains PSU 15Vdc 2A 2.5mm Coax

    Order #: IO610E-PSU

    Mfg #: IO610E-PSU

    Availability: Ships in 3-4 weeks
    Special Price $70.58 Regular Price $76.72
  5. Druck PV411-115-IS Hydraulic Reservoir IS 100cc
    Druck PV411
    Hydraulic Reservoir IS 100cc

    Order #: PV411-115-IS

    Mfg #: PV411-115-IS

    Availability: Ships in 3-4 weeks
    Special Price $1,273.83 Regular Price $1,384.60

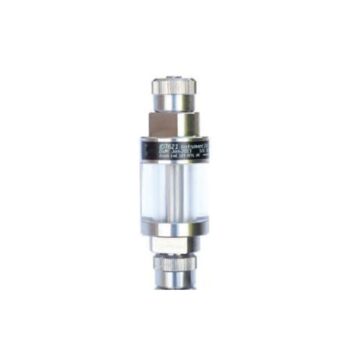

  6. Druck IO620-IDT621-IS 35 Bar Dirt Moisture Trap - IS
    Druck IO620
    35 Bar Dirt Moisture Trap - IS

    Order #: IO620-IDT621-IS

    Mfg #: IO620-IDT621-IS

    Availability: Ships in 3-4 weeks
    Special Price $879.70 Regular Price $956.20
  7. Druck IOHOSE-NP3 Pneumatic 35 bar Hose, 3 meters
    Druck IOHOSE
    Pneumatic 35 bar Hose, 3 meters

    Order #: IOHOSE-NP3

    Mfg #: IOHOSE-NP3

    Availability: Ships in 3-4 weeks
    Special Price $521.64 Regular Price $567.00
  8. Druck IO620-HOSE-P3 Pneumatic 400 bar Hose, 3 meters
    Druck IO620
    Pneumatic 400 bar Hose, 3 meters

    Order #: IO620-HOSE-P3

    Mfg #: IO620-HOSE-P3

    Availability: Ships in 3-4 weeks
    Special Price $857.80 Regular Price $932.40
  9. Druck IO620-HOSE-H3 Hydraulic Hose, 3 meters
    Druck IO620
    Hydraulic Hose, 3 meters

    Order #: IO620-HOSE-H3

    Mfg #: IO620-HOSE-H3

    Availability: Ships in 3-4 weeks
    Special Price $887.43 Regular Price $964.60
  10. Druck IO620-HOSE-P3-IS Pneumatic Hose, 3 meters (IS)
    Druck IO620
    Pneumatic Hose, 3 meters (IS)

    Order #: IO620-HOSE-P3-IS

    Mfg #: IO620-HOSE-P3-IS

    Availability: Ships in 3-4 weeks
    Special Price $958.27 Regular Price $1,041.60
  11. Druck IO620-HOSE-H3-IS Hydraulic Hose, 3 meters (IS)
    Druck IO620
    Hydraulic Hose, 3 meters (IS)

    Order #: IO620-HOSE-H3-IS

    Mfg #: IO620-HOSE-H3-IS

    Availability: Ships in 3-4 weeks
    Special Price $1,257.08 Regular Price $1,366.40
