Product Highlights

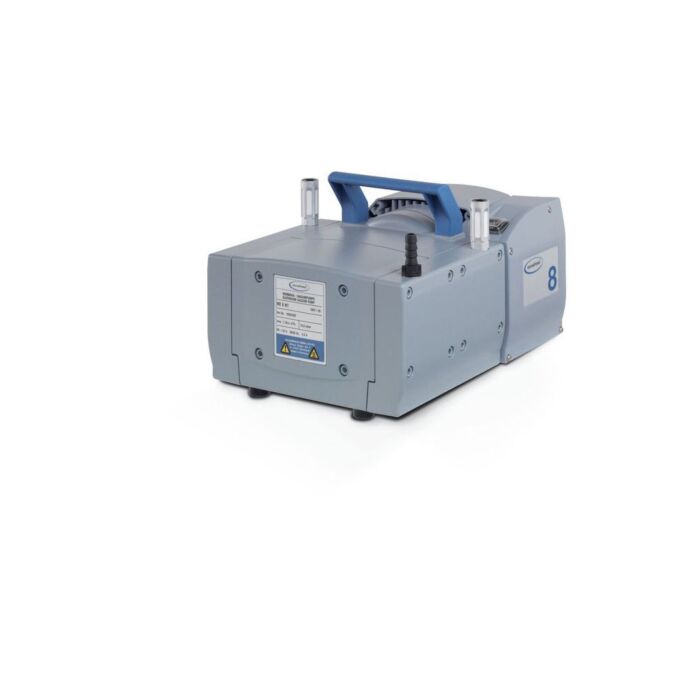

Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics, and allow a wide range of applications for non-corrosive gases. The highly flexible, fabric-reinforced double diaphragm made of FKM is ideal for extended operating life. These pumps with four heads provide very high pumping speed. The new NT-series features improved performance data. Large one-stage diaphragm pumps are an excellent choice for continuous, oil-free pumping of large amounts of gas- es. Typical applications are vacuum ovens and pumping of non-corrosive gases in general. We recommend these pumps especially for processes with high inlet and process pressures. They are excellent for very fast evacuations. The ME 8 NT offers very short evacuation times.
- Contamination-free pumping and evacuation
- Very high flow rate even near ultimate vacuum
- Quiet operation
- Very low vibration
- Exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
Technical data and graphs
| Max. pumping speed 50 Hz |
7.3 m3/h |
| Max. pumping speed 60 Hz |
4.8 cfm |
| Ultimate vacuum |
70 mbar / 52 torr |
| Number of heads |
4 |
| Number of stages |
1 |
| Lower ambient temperature (operation) |
10 °C |
| Upper ambient temperature (operation) |
40 °C |
| Lower ambient temperature (storage) |
-10 °C |
| Upper ambient temperature (storage) |
60 °C |
| Max. back pressure (abs.) |
2 bar |
| Inlet connection |
Hose nozzle DN 8-10 mm |
| Outlet connection |
2 x G1/4" |
| Rated motor power |
0.25 kW |
| Rated motor speed at 50/60 Hz |
1800 min-1 |
| Protection class IEC 60529 |
IP 40 |
| Dimension L in mm |
328 mm |
| Dimension B in mm |
239 mm |
| Dimension H in mm |
198 mm |
| Weight |
16.4 kg |
| Noise (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUUPURE®) |
45 dBA |
| NRTL certification |
Yes |
| Items supplied |
Pump completely mounted, ready for use, silencer, hose nozzle, with manual. |
| Rated mains voltage range 1 |
120 V |
| Mains frequency 1 |
60 Hz |
