Yokogawa WT333 for Rent, Digital Power Meter, 3-Phase, 5mA to 20A, 3-Input Elements
Order #WT333-RENT2|Mfg #WT333
For Rent
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Yokogawa WT333 Highlights

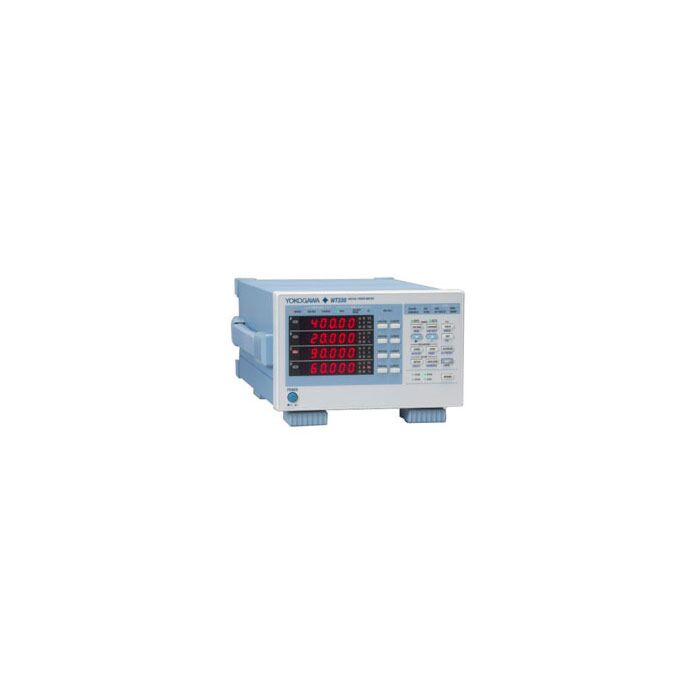

The Yokogawa WT333 Digital Power Meter 100 kHz, 3 Ch provides a wide current input range, fast display, and rapid data update rate in a compact and powerful instrument. High performance and reliable power measurement make it the preferred power meter in numerous industries from production lines to R&D applications.
Basic accuracy of 0.1% of reading
Low current measurement
Wide current input ranges
Standard USB, and GP-IB or RS-232 (selectable) and Ethernet (optional)
Measures all AC and DC parameters
Measures harmonics and performs integration simultaneously without changing the measurement mode
Uses WTViewrFreePlus software to monitor and save parameters
Provides short tact time in testing procedures
Consistent basic measurement accuracy for all input ranges
MAX Hold Function: Allows maximum values of RMS/PEAK voltage and current active power, reactive power and apparent power to be held
Line Filter and Frequency Filter Functions: Cuts off unnecessary noise and harmonic components for fundamental waveform measurements
