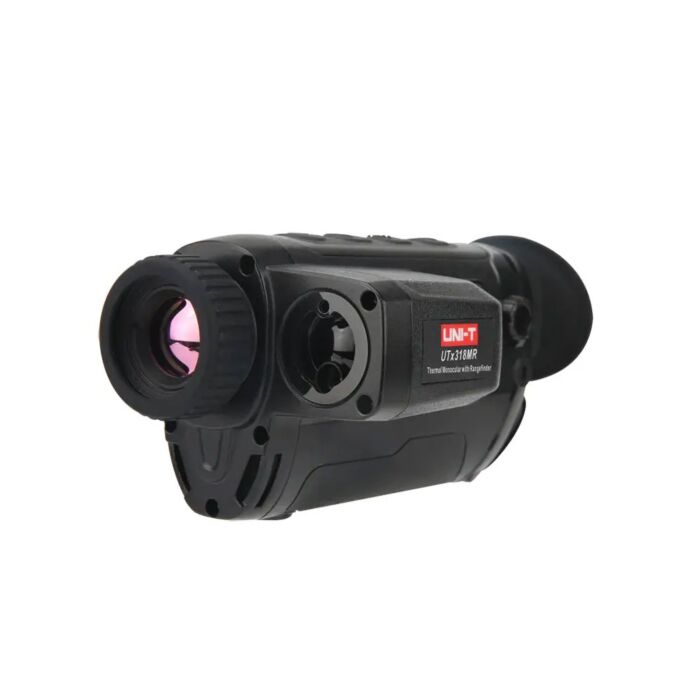

The UNI-T UTx318MR 50Hz, 400x300, Medium-Range Thermal Monocular combines thermal imaging with laser range finding in a compact, versatile monocular. Featuring a 400x300 pixel detector with 12um pixel size, it delivers clear thermal imaging with a 14.6deg(H)x11deg(V) field of view through its 18mm focal length lens and manual focus capability. The integrated laser rangefinder enables accurate distance measurement up to 1000m. The 0.39" OLED display (1024x768) and 50Hz frame rate ensure smooth viewing experience. Advanced features include stadiametric ranging, smart standby mode, hot trace, PIP mode, video recording, and Wi-Fi live streaming via the "Thermal Xplorer" APP. With enhanced detection ranges (299m for rabbit, 944m for human), IP67 water/dust protection, 2m drop-proof construction, and a 3200mAh detachable Li-ion battery, the UTx318MR offers an excellent balance of field of view and detection capability for versatile thermal observation and range finding applications.
- Medium-Range Thermal Monocular with Laser Range, 18mm Lens
- 0.39" OLED display screen (1024x768) for crisp, detailed thermal imaging
- High-sensitivity detector with 400x300 pixel resolution for clear thermal imaging
- Integrated laser rangefinder with measurement capability up to 1000m
- 50Hz frame rate delivers smooth image experience for effortless tracking of moving targets
- Three scene modes (Bird, Forest, Rock) optimize imaging for different environmental conditions
- Stadiametric ranging function for alternative distance estimation of observed objects
- Smart standby mode conserves power during periods of inactivity
- Hot trace function for efficiently tracking heat signatures in the environment
- PIP (Picture-in-Picture) mode to highlight target clearly against broader background
- Video recording function to capture and store thermal footage for later analysis
- Wi-Fi live streaming capability via "Thermal Xplorer" APP for remote viewing
- Detachable 3200mAh Li-ion battery pack (UT-M20) for easy replacement in the field
- Multi-language operating system supporting EN, FR, DE, ES, IT, RU, and UA
- IP67 water and dust protection rating for reliable operation in harsh environments
- 2-meter drop-proof construction ensures durability during field use
- Manual focus functionality for precise image adjustment in various conditions
- 2x, 4x, 8x digital zoom with continuous 1.0~8x zoom capability for detailed observation
- Enhanced detection range of 299m for rabbit-sized objects with 37m identification range
- Human detection range of 944m with 236m recognition range and 118m identification range
- Vehicle detection range of 2289m with 572m recognition range and 286m identification range
- Wild boar detection range of 808m with 202m recognition range and 101m identification range
- -5D~+3D diopter adjustment range for comfortable viewing without glasses
- Type-C interface for convenient charging and data transfer
- Compact dimensions (160x71.5x38.5mm) and lightweight design (357g) for field portability
- Compatible with standard 18650 batteries for field power flexibility
Applications
- Hunting / Wildlife Observation
- Search & Rescue (SAR) / First Responder Use
- Outdoor Surveillance & Security
- Outdoor Recreation / Navigation / Marine Use
- Tactical / Law Enforcement Use
Each Unit Includes
- 1 - 50Hz, 400x300, Medium-Range Thermal Monocular with Laser Range (UTx318MR)
- 1 - Battery Pack (UT-M20)
- 1 - Type-C Cable
- 1 - Wrist Strap
- 1 - Neck Strap
- 1 - Carrying Case
- 1 - Lens Cloth
- 1 - User Manual
