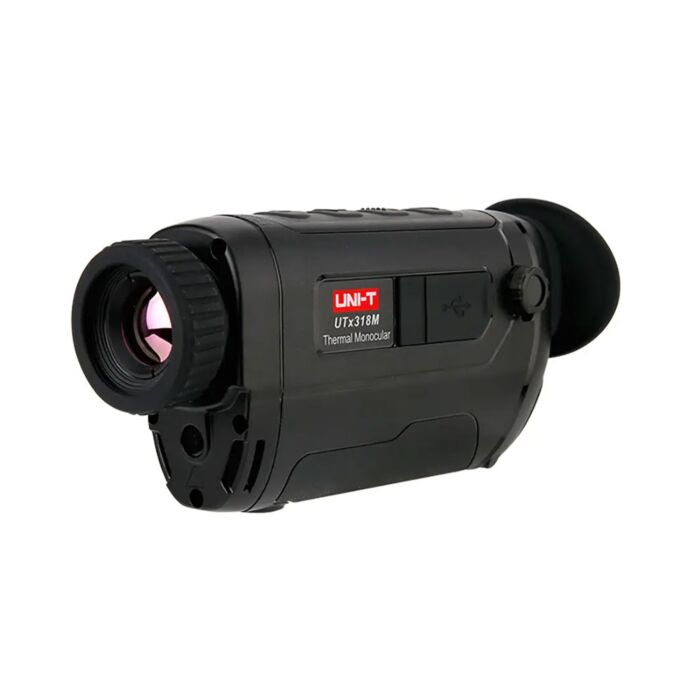

The UNI-T UTx318M is a professional light-weight thermal monocular featuring a high-sensitivity 400x300 pixel detector with 12um pixel size. With an 18mm focal length lens providing a 14.6deg(H)x11deg(V) field of view and manual focus capability, it delivers clear thermal images in various environments. The 0.39" OLED display (1024x768) and 50Hz frame rate ensure smooth viewing experience. Advanced features include stadiametric ranging, hot trace, PIP mode, video recording, and Wi-Fi live streaming via the "Thermal Xplorer" APP. With IP67 water/dust protection, 2m drop-proof construction, and a 3200mAh detachable Li-ion battery providing 24 hours of operation, the UTx318M is ideal for outdoor observation, pest control, night patrol, and security applications.
- Infrared Medium-Range Thermal Monocular with 18mm Lens
- 0.39" OLED display screen (1024x768) for crisp, detailed thermal imaging
- High-sensitivity detector with 400x300 pixel resolution for clear thermal imaging
- 50Hz frame rate delivers smooth image experience for effortless tracking of moving targets
- Three scene modes (Bird, Forest, Rock) optimize imaging for different environmental conditions
- Stadiametric ranging function for accurate distance measurement of observed objects
- Smart standby mode conserves power during periods of inactivity
- Hot trace function for efficiently tracking heat signatures in the environment
- PIP (Picture-in-Picture) mode to highlight target clearly against broader background
- Video recording function to capture and store thermal footage for later analysis
- Wi-Fi live streaming capability via "Thermal Xplorer" APP for remote viewing
- Detachable 3200mAh Li-ion battery pack (UT-M20) for easy replacement in the field
- Multi-language operating system supporting EN, FR, DE, IT, ES, RU, and UA
- IP67 water and dust protection rating for reliable operation in harsh environments
- 2-meter drop-proof construction ensures durability during field use
- Manual focus functionality for precise image adjustment in various conditions
- 2x, 4x, 8x digital zoom with continuous 1.0~8x zoom capability for detailed observation
- Silent button design for discreet operation during wildlife observation or surveillance
- 808m detection range for enhanced long-distance surveillance capabilities
- 202m recognition range for clear subject identification at distance
- 101m identification range for detailed subject analysis
- Auto, Manual, and Background calibration modes for optimizing image quality
- -4D~+5D diopter adjustment range for comfortable viewing without glasses
- Type-C interface for convenient charging and data transfer
Applications
- Wildlife Observation / Hunting / Nature Surveillance
- Search & Rescue (SAR) / Outdoor Navigation
- Security & Perimeter Monitoring
- Outdoor Recreation & Expedition Use
- General inspection / Maintenance
Each Unit Includes
- 1 - 50Hz, 400x300, Infrared Medium-Range Thermal Monocular (UTx318M)
- 1 - Battery Pack (UT-M20)
- 1 - Type-C Cable
- 1 - Carrying Case
- 1 - Lens Cloth
- 1 - User Manual
