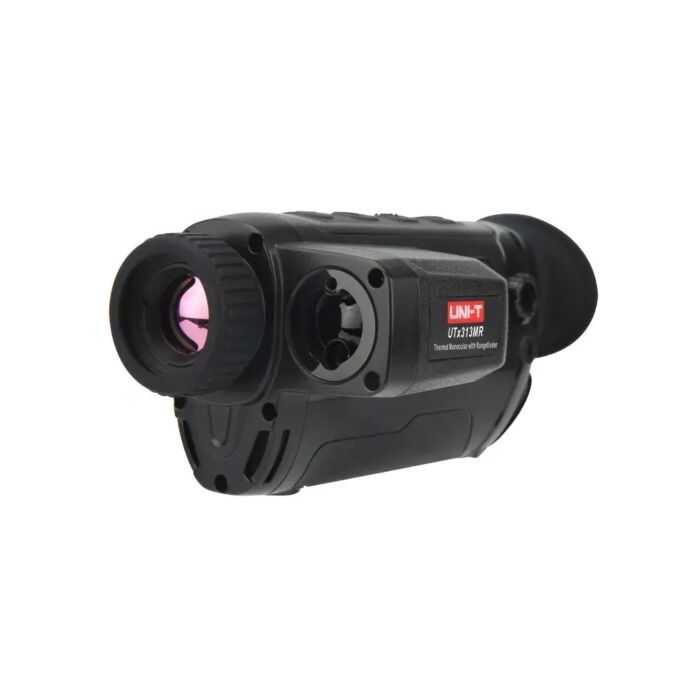

The UNI-T UTX313MR 50Hz, 400x300 Wide-Angle Thermal Monocular combines thermal imaging with laser rangefinding in a compact monocular format. Featuring a 400x300 pixel detector with 12um pixel size, it delivers clear thermal imaging with a wide 20deg(H)x15deg(V) field of view through its 13.5mm focal length lens and manual focus capability. The integrated laser rangefinder enables accurate distance measurement up to 1000m. The 0.39" OLED display (1024x768) and 50Hz frame rate ensure smooth viewing experience. Advanced features include stadiametric ranging, smart standby mode, hot trace, PIP mode, video recording, and Wi-Fi live streaming via the "Thermal Xplorer" APP. With detection ranges suitable for close-range observation (225m for rabbit, 711m for human), IP67 water/dust protection, 2m drop-proof construction, and a 3200mAh detachable Li-ion battery, the UTX313MR is ideal for outdoor observation, hunting, and security applications where precision distance measurement is required.
- Wide-Angle Thermal Monocular with Laser Range, 13mm Lens
- 0.39" OLED display screen (1024x768) for crisp, detailed thermal imaging
- High-sensitivity detector with 400x300 pixel resolution for clear thermal imaging
- Integrated laser rangefinder with measurement capability up to 1000m
- 50Hz frame rate delivers smooth image experience for effortless tracking of moving targets
- Three scene modes (Bird, Forest, Rock) optimize imaging for different environmental conditions
- Stadiametric ranging function for alternative distance estimation of observed objects
- Smart standby mode conserves power during periods of inactivity
- Hot trace function for efficiently tracking heat signatures in the environment
- PIP (Picture-in-Picture) mode to highlight target clearly against broader background
- Video recording function to capture and store thermal footage for later analysis
- Wi-Fi live streaming capability via "Thermal Xplorer" APP for remote viewing
- Detachable 3200mAh Li-ion battery pack (UT-M20) for easy replacement in the field
- Multi-language operating system supporting EN, FR, DE, ES, IT, RU, and UA
- IP67 water and dust protection rating for reliable operation in harsh environments
- 2-meter drop-proof construction ensures durability during field use
- Manual focus functionality for precise image adjustment in various conditions
- 2x, 4x, 8x digital zoom with continuous 1.0~8x zoom capability for detailed observation
- Wide 20deg(H)x15deg(V) field of view ideal for scanning larger areas
- Detection range of 225m for rabbit-sized objects with 28m identification range
- Human detection range of 711m with 178m recognition range and 89m identification range
- Vehicle detection range of 1723m with 431m recognition range and 215m identification range
- -5D~+3D diopter adjustment range for comfortable viewing without glasses
- Type-C interface for convenient charging and data transfer
- Compact dimensions (160x71.5x38.5mm) and lightweight design (357g) for field portability
- Compatible with standard 18650 batteries for field power flexibility
Applications
- Hunting / Wildlife Observation
- Search & Rescue (SAR) / First Responder Use
- Outdoor Surveillance & Security
- Outdoor Recreation / Navigation / Marine Use
- Tactical / Law Enforcement Use
Each Unit Includes
- 1 - 50Hz, 400x300 Wide-Angle Thermal Monocular with Laser Range (UTx313MR)
- 1 - Battery Pack (UT-M20)
- 1 - Type-C Cable
- 1 - Wrist Strap
- 1 - Neck Strap
- 1 - Carrying Case
- 1 - Lens Cloth
- 1 - User Manual
