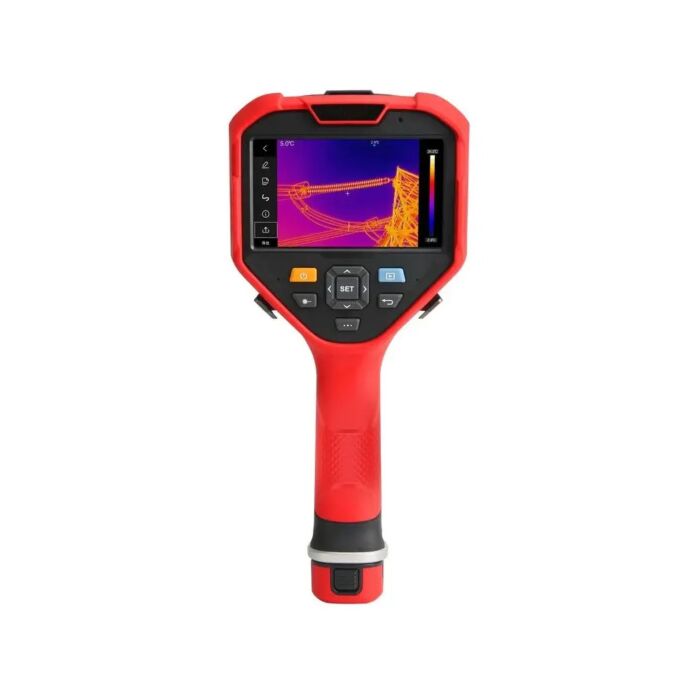

UTi760X features a high resolution infrared detector of 640x512 pixels and a 13MP digital camera. The high-precision thermal camera designed specifically for industrial field. 30Hz infrared frame rate for fast and accurate access to more temperature data of the moving targets. The wide temperature measurement range and the optional camera lens meet the requirements of numerous severe measurement scenarios.
Each precision-engineered lens is optimized for specific inspection scenarios, providing professional thermographers with unprecedented versatility in a single instrument. The 9.6mm wide-angle lens (46°Hx37°V FOV) captures expansive areas for building envelope surveys and large equipment inspections. The 18mm macro lens enables ultra-close inspection down to 20mm (0.79 inches) minimum focus distance, perfect for detailed electronic component analysis and precision equipment diagnostics. The 18mm standard lens (24°Hx19.3°V FOV) provides the ideal balance for general inspections, while the 36mm tele lens (12°Hx9.6°V FOV) extends reach for overhead equipment and distant installations.
For specialized long-range applications, the 62.8mm ultra-telephoto lens (7°Hx5.6°V FOV) enables detailed thermal imaging of power transmission equipment, elevated structures, and inaccessible installations from safe distances up to 2 meters (6.6 ft) minimum focus. The dedicated 18mm high-temperature lens extends measurement capability to extreme temperatures from 1000°C to 2200°C (1832°F to 3992°F), essential for furnace inspections, metal processing, and high-temperature industrial processes. This comprehensive lens selection ensures the UTi760X adapts seamlessly to any thermal inspection requirement, from microscopic circuit board analysis to distant infrastructure surveys.
- Revolutionary 6-Lens System: Interchangeable lenses covering every inspection scenario from macro to ultra-telephoto
- High-Resolution 640x512 IR Detector: Professional-grade thermal imaging with exceptional detail
- Super Resolution Technology: Enhanced image quality up to 1280x1024 pixels for superior clarity
- Large 5-inch Touchscreen: Intuitive 1280x720 display for easy operation and detailed viewing
- Thermal Sensitivity 35mK (NETD): Detects minute temperature differences for precise diagnostics
- Measures from -20°C to 1200°C (-4°F to 2192°F) with high-temperature lens, conventional lenses measure -20°C to 2200°C (-4°F to 3992°F)
- Multiple focus modes including continuous AF, semi-auto, laser-assisted, touch AF, and manual focus
- AI-Powered Intelligence: Smart meter reading and AI voice commands for hands-free operation
- Comprehensive Connectivity: Bluetooth, Wi-Fi live streaming, HDMI display extension, and laser pointer
- Professional Image Modes: Thermal, visual, fusion, T-Mix, PIP, and dual-channel imaging with customizable color palettes
- Rugged Construction: IP54 rated with 2-meter (6.6 ft) drop protection for demanding field conditions
- Extended Operating Time: 5000mAh rechargeable battery providing ≥5 hours of continuous operation
Applications
- Industrial Process & Maintenance
- Electrical & Utility Inspection
- Building & HVAC
- R&D and Manufacturing
- Public Safety & Security
Each Unit Includes
- 1 - 30Hz/640x512, 640 Inspector Series Thermal Imager, -4°F to 2192°F (UTi760X)
- 6 - Interchangeable Lenses (Wide-Angle, Macro, Standard, Tele, Ultra-Tele, High-Temperature)
- 1 - Rechargeable Li-ion Battery Pack (UT-M25)
- 1 - USB Type-C Charging Cable
- 1 - Lens Cleaning Kit
- 1 - User Manual
- 1 - Calibration Certificate
- 1 - Rugged Carrying Case
- 1 - Neck Strap
