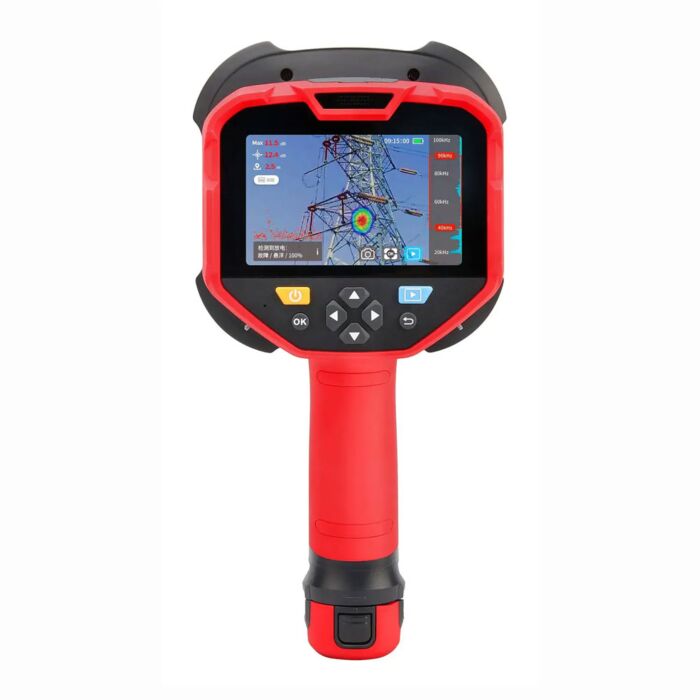

The UNI-T UT568B Acoustic Imager sets a new standard in industrial inspection technology by combining cutting-edge acoustic imaging with intuitive operation. This advanced device visualizes invisible acoustic phenomena through its high-definition display, pinpointing gas leaks and partial discharges with unprecedented accuracy.
Featuring 138 high-sensitivity digital MEMS microphones and extended detection range up to 150 meters, the UT568B transforms complex sound data into actionable insights. Its adjustable bandwidth (2kHz to 100kHz) means you can filter out ambient noise and focus precisely on problem areas, whether you're inspecting power transmission equipment, pressurized systems, or industrial pipelines.
Engineers and maintenance professionals across industries rely on the UT568B's ability to detect and visualize issues before they become catastrophic failures, dramatically reducing downtime and maintenance costs while enhancing workplace safety.
- High-Precision Sound Source Localization with 138 built-in low-noise MEMS microphones in a sophisticated array configuration
- Extensive Detection Range from 0.3m to 150m for comprehensive inspection capabilities
- Adjustable Bandwidth capturing acoustic spectrum from 2kHz to 100kHz to isolate specific frequencies
- Intelligent Partial Discharge Detection identifying corona, floating, and surface discharge types in high-voltage systems
- Multiple Visualization Modes including single source, multiple source, and hologram for complete acoustic imaging
- Real-Time Data Recording with snapshot and video capabilities for documentation and analysis
- Focus Mode that concentrates acoustic imaging in small areas to reduce interference from other noise sources
- Dynamic Range Adjustment making it easier to identify even tiny leaks
- Advanced Analysis Software supporting time-domain waveform, frequency spectrogram, and PRPD pattern analysis
- Integrated LED Lighting for clear visibility in dim environments
- Extended Battery Life with two detachable and rechargeable Li-ion battery packs
- Rugged, Ergonomic Design for comfortable use in industrial environments
Applications
- Leak Detection in Compressed Air / Gas Systems
- Facility/plant Maintenance & Energy Efficiency Audits
- Building Systems / Utilities Inspections
- Remote or Hazardous Environment Safety Checks
- Insulation Fault Detection in High-Voltage or Electrical Systems
Each Unit Includes
- 1 - Acoustic Imaging Camera (UT568B)
- 2 - Li-ion Battery Pack (UT-M23)
- 1 - Power Adapter
- 1 - Type-C USB Cable
- 1 - Earpiece
- 1 - SD Card Reader
- 1 - SD Card (128GB)
- 1 - Quick Start Guide
