The UTS7000A series is a signal analyzer with a frequency range from 2 Hz to 40 GHz. It can serve as the core instrument in an automatic control system and is well-suited for various testing and application needs in corporate R&D, factory production, and educational research environments. Engineered to meet demanding requirements in communication signal analysis, the UTS7000A achieves phase noise performance better than -110 dBc/Hz (typical) at a 10 kHz offset with a 1 GHz carrier, ensuring accurate and stable measurements. Detecting weak signals can be challenging due to interference from the instrument's inherent noise floor. The UTS7000A series features a low displayed average noise level (DANL) of -167 dBm (typical), delivering exceptional sensitivity for reliable weak signal detection.

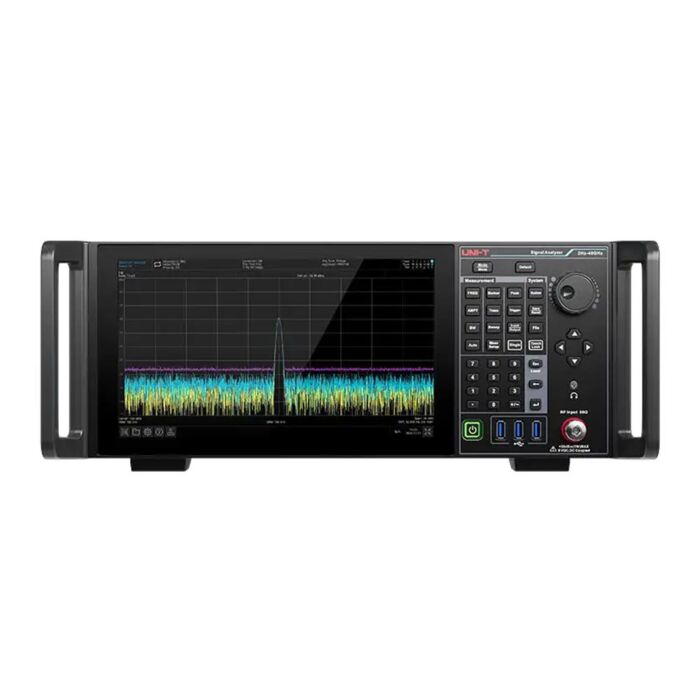

The UNI-T UTS7040A is part of the Interceptor-Series Spectrum Analyzers, featuring detailed RF (radio frequency) and communication signal analysis up to 40 GHz. The UTS7040A combines wide bandwidth, low noise performance, and flexible measurement options in a benchtop instrument. Equipped with an 11.6-inch multi-touch capacitive HD screen, the system supports intuitive gesture operations such as dragging, pinching, and zooming of traces through quick-access menus. This user-friendly human-machine interface streamlines workflows and reduces operational complexity.
Engineered to meet demanding requirements in communication signal analysis, the UTS7040A achieves phase noise performance better than -110 dBc/Hz (typical) at a 10 kHz offset with a 1 GHz carrier, ensuring accurate and stable measurements. The system delivers excellent amplitude measurement accuracy. For signals below 8 GHz, the typical amplitude accuracy is better than ±0.4 dB, enabling precise signal analysis across a wide frequency range.
- Frequency range: 2 Hz~40 GHz
- Displayed Average Noise Level (DANL): Up to -167 dBm (Typical)
- Phase Noise: <-110 dBc/Hz (at 10 kHz offset, typical)
- Sweep Point: Up to 100,001
- Minimum Resolution Bandwidth (RBW): 1 Hz
- Supports Advanced Measurements (Optional)
- Supports EMI Analysis Function (Optional)
- Supports Analog Demodulation Analysis (Optional)
- Supports Vector Signal Analysis (Optional)
- Supports I/Q Analysis (Optional)
- Supports 5G NR and 4G LTE standard communication Signal Demodulation(Optional)
- Standard high-stability clock source (OCXO)
- Equipped with 11.6-inch 1920x1080 TFT LCD display
- Various interfaces: Keyboard, mouse, storage, upper computer, remote control, Web control, multi-device synchronization, demo monitoring, 3.5mm headphone jack, etc.
Applications
- Corporate R&D
- Factory Production
- 5G and Wireless Communication
- Automatic Control Systems
- IoT and Smart City Applications
- Educational Research
Each Unit Includes
- 1 - 2 Hz-40 GHz Interceptor-Series Spectrum Analyzer (UTS7040A)
- 1 - Power Cable
- 1 - USB Data Cable
