USG3000V Series adopts Direct Digital Synthesis (DDS) technology, enabling the generation of high-precision, stable waveforms across a frequency range of 9 kHz to 6.5 GHz. It supports analog demodulation functions such as AM, FM, ØM, and I/Q modulation, and is also equipped with pulse modulation, pulse train generation, and a power meter function. With its user-friendly operation, superior technical specifications, and intuitive graphical display, the USG3000V Series serves as a versatile tool for learning, testing, and improving work efficiency.

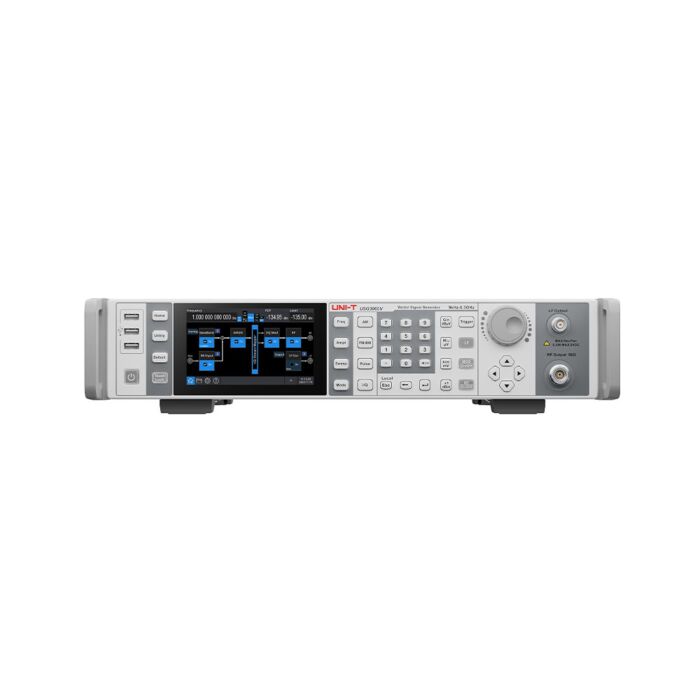

The UNI-T USG3045V-P RF vector signal generator combines 9 kHz to 4.5 GHz frequency coverage with mechanical attenuator performance delivering up to +24 dBm output power for engineers testing power amplifiers, transmitters, and high-power RF components in commercial wireless systems. Featuring 150 MHz I/Q modulation bandwidth, exceptional phase noise performance (<-122 dBc/Hz @ 1 GHz), and superior level accuracy at high power levels, this instrument provides the enhanced signal generation capabilities essential for 5G infrastructure power amplifier testing, Wi-Fi equipment production validation, and commercial applications requiring both vector modulation and high-power drive capability.
Professional RF vector signal generator covering L/S/C-bands with built-in mechanical attenuator for enhanced accuracy, perfect for Wi-Fi, sub-6 GHz 5G, and wireless IoT testing. Features advanced IQ modulation up to 4.5 GHz with 150 MHz bandwidth, integrated 50 MHz function generator, and exceptional -135 to +25 dBm output power range.
- Frequency Range: 9 kHz to 4.5 GHz (CW mode); >5 MHz to 4.5 GHz (I/Q mode).
- Frequency Resolution: 0.001 Hz.
- Output Power Range: up to +24 dBm with a mechanical attenuator.
- Phase Noise: <-122 dBc/Hz @ 1 GHz, 20 kHz offset (typical).
- I/Q Modulation Bandwidth: 150 MHz (standard).
- Modulation Types: AM, FM, ØM (standard); Pulse (optional).
- Display: 5-inch capacitive multi-touch screen (800
