USG3000M series RF signal generators deliver high-quality signals, precise signal levels, and an ultra-wide output power range, meeting the demanding testing needs of wireless communication, aerospace, automotive electronics, industrial manufacturing, semiconductor, and research and education industries.

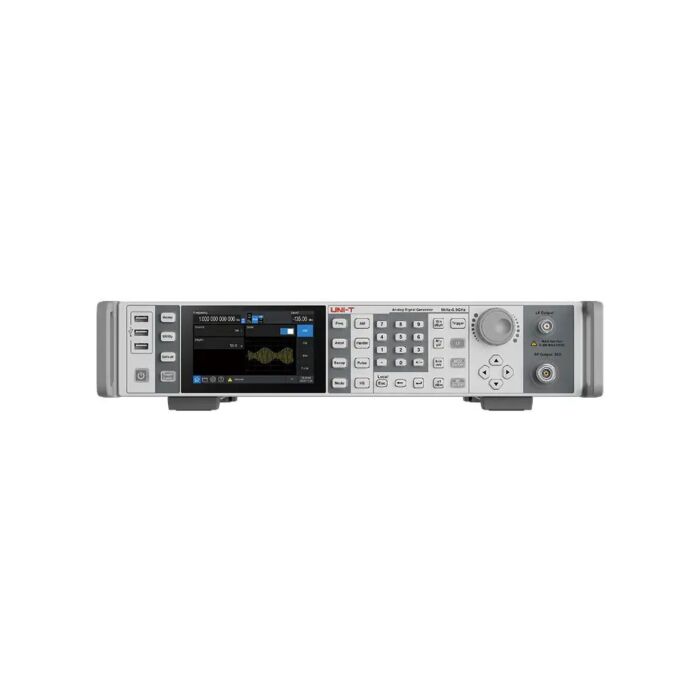

The UNI-T USG3065M RF signal generator sets a new standard for performance and versatility in the mid-range frequency spectrum. With an extended frequency range from 9 kHz to 6.5 GHz, this precision instrument delivers the clean, stable signals required for wireless communications development, IoT device testing, and advanced research applications. Its exceptional signal purity and comprehensive feature set make it the ideal choice for professionals who need reliable RF testing capabilities up to 6.5 GHz.
- Extended Frequency Coverage: Generate precise signals from 9 kHz to 6.5 GHz for modern wireless applications
- Exceptional Spectral Purity: Ultra-low phase noise (<-122 dBc/Hz @ 1 GHz, 20 kHz offset) ensures measurement accuracy
- Wide Dynamic Range: Output levels from -135 dBm to +20 dBm with 0.01 dB resolution
- Versatile Modulation: Standard AM, FM, and ΦM capabilities with internal and external sources
- Electronic Attenuator: Reliable level control across the full frequency range
- Intuitive User Interface: 5-inch capacitive touchscreen with logical menu structure
- Comprehensive Connectivity: LAN and USB interfaces for remote operation
- Built-in Function Generator: Integrated 50 MHz function/arbitrary waveform generator
Applications
- Wireless Communications Testing
- Component/Subsystem Evaluation
- Automotive Electronics
- Production / Manufacturing Test
- Research & Education
Each Unit Includes
- 1 - 9 kHz to 6.5 GHz Analog RF Signal Generator (USG3065M)
- 1 - Power Cord (compliant with local standards)
- 1 - USB Data Cable (UT-D14)
- 1 - User Manual
- 1 - Calibration Certificate
