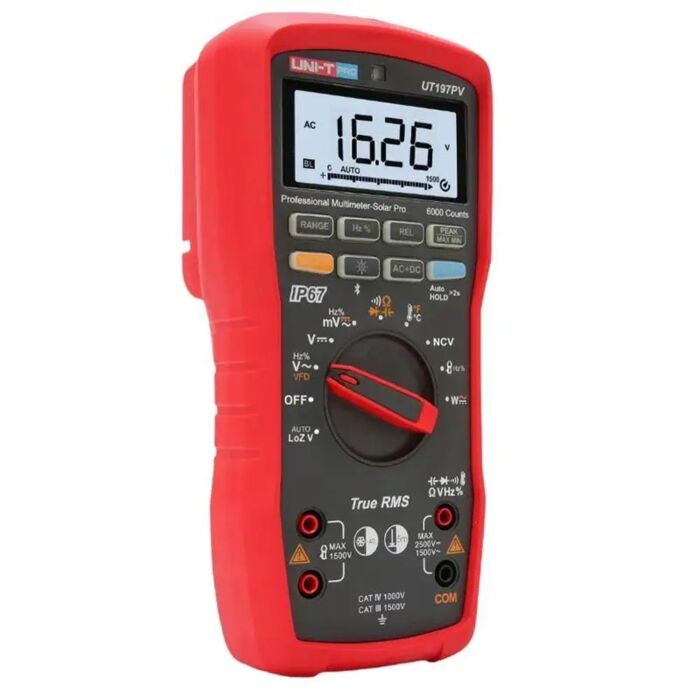

The UNI-T UT197PV is a rugged, high-precision True-RMS handheld digital multimeter specifically engineered for solar power and renewable energy applications. With extended voltage measurement capabilities up to 2500V DC/1500V AC and specialized power analysis functions, this meter delivers the precision needed for modern solar installations. Its exceptional environmental protection with IP67 rating and verified 5-meter (16.4 ft) drop resistance ensures reliable performance in harsh outdoor conditions, while operating across an extreme temperature range of -40°C to 55°C (-40°F to 131°F). Designed for solar power technicians, renewable energy specialists, and industrial electricians, the UT197PV combines specialized measurement capabilities with comprehensive durability features for accurate diagnostics in demanding field environments.
The UNI-T UT197PV is specifically designed to meet the unique measurement needs of solar installations and renewable energy systems. With DC voltage measurement up to 2500V and AC voltage up to 1500V, it provides the extended range necessary for modern solar arrays, large-scale installations, and high-voltage systems. This capability is essential for technicians working with both residential solar systems and commercial installations where standard multimeters often fall short.
The built-in power analysis functions enable comprehensive evaluation of system performance, including active power (W), apparent power (VA), reactive power (VAr), and power factor measurements. These capabilities allow technicians to verify system efficiency, diagnose power quality issues, and ensure optimal operation of inverters and control systems. With measurement ranges up to 2500kVA DC and 1500kVA AC, the UT197PV delivers the specialized functionality needed for complete solar system diagnostics.
- DC/AC voltage: 2500V/1000V
- DC/AC current: 10A
- Comprehensive Power Analysis: Active, reactive, and apparent power measurement with power factor calculation
- IP67 Environmental Protection: Complete dust and water-resistant design for harsh outdoor environments
- 5-Meter (16.4 ft) Drop Protection: Exceptional durability for extreme field conditions
- Extended Temperature Range: Operates in extreme environments from -40°C to 55°C (-40°F to 131°F)
- True RMS Measurement: Accurate readings on modern electronic loads and distorted waveforms
- Fast Measurement Response: 250µs bandwidth for analyzing transient events in power systems
- Bluetooth Connectivity: Pairs with UNI-T Smart Measure APP for data logging and analysis
- External Current Measurement: Optional UT-CS07 clamp for 1000A AC/DC current testing (Not Included)
- Enhanced Safety Rating: CAT IV 1000V and CAT III 1500V for maximum protection in solar installations
Applications
- Solar PV Installation & Maintenance
- Industrial & Factory Maintenance
- Harsh Environments
- Power Engineering & Utilities
- Data Logging
Each Unit Includes
- 1 - True-RMS Solar Pro Industrial Digital Multimeter with Bluetooth (UT197PV)
- 1 - Set of Test Probes
- 1 - Temperature Probe
- 1 - 9V Battery
- 1 - User Manual
- 1 - Certificate of Calibration
- 1 - Carrying Case
