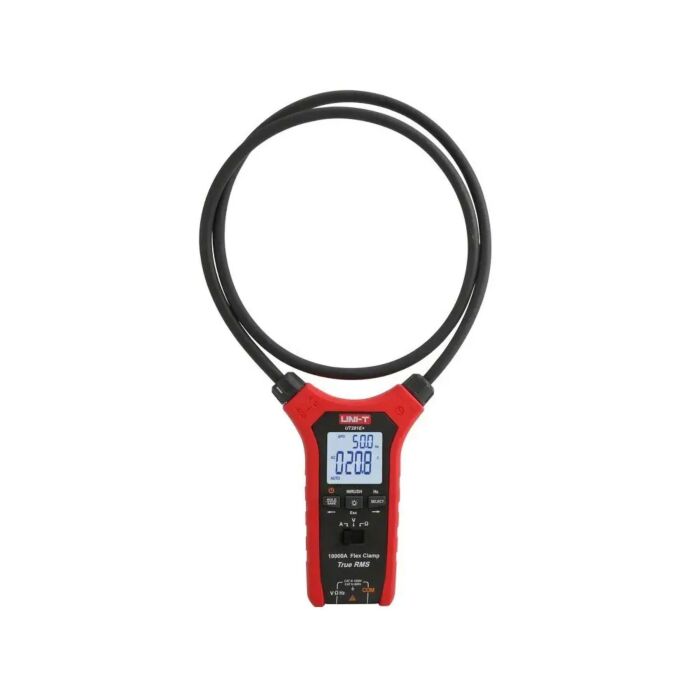

The UT281 series True RMS Flexible Clamp Meters are high-precision, multi-functional electrical measuring instruments. Boasting a current measurement range of up to 10,000A, they are equipped with a 1.1-meter-long flexible coil. These meters find extensive application across diverse fields including smelting, communications, manufacturing, petroleum, power, electrical engineering, and photovoltaic stations.
The UNI-T UT281E+ features an innovative 1100mm (43-inch) flexible Rogowski coil that can measure conductors up to 340mm in diameter, enabling measurements in areas where traditional rigid clamp meters cannot access. This exceptional flexibility allows technicians to navigate crowded electrical panels, tightly packed cable bundles, and irregularly shaped conductors without compromising measurement accuracy. The flexible design eliminates the alignment and jaw opening limitations of conventional clamp meters, making it ideal for measuring large bus bars, multiple cables, and awkwardly positioned conductors in industrial power distribution systems. Combined with its 10,000A measurement capacity, the UT281E+ provides unprecedented capability for heavy industrial applications and high-capacity power systems.
- Exceptional Current Range: Measures up to 10,000A AC with precision
- Extra-Long 1100mm (43-inch) Flexible Coil: Easily fits around large bus bars and cable bundles
- True-RMS Measurement: Accurate readings on non-sinusoidal waveforms and distorted signals
- 6000 Count Resolution: High precision for detailed analysis
- Inrush Current Measurement: Captures startup current spikes in motors and equipment
- Data Storage: Records up to 999 measurements for later analysis
- Full-Range Overload Protection: Enhanced safety in high-current environments
- Comprehensive Measurement Capability: AC current, voltage, frequency, and resistance
- Dual Display: Shows current and frequency simultaneously
- CAT III 1000V / CAT IV 600V Safety Rating: Professional-grade protection for industrial environments
Applications
- Power and Electrical Engineering
- Industrial Manufacturing & Smelting
- Renewable Energy
- Petroleum & Communications
- Motor Diagnostics
Each Unit Includes
- 1 - True-RMS Flexible AC Current Clamp Meter, 1000V AC/DC, 10,000A AC (UT281E+)
- 1 - Set of Test Leads
- 3 - AAA Batteries
- 1 - User Manual
- 1 - Carrying Case
- 1 - Certificate of Calibration
