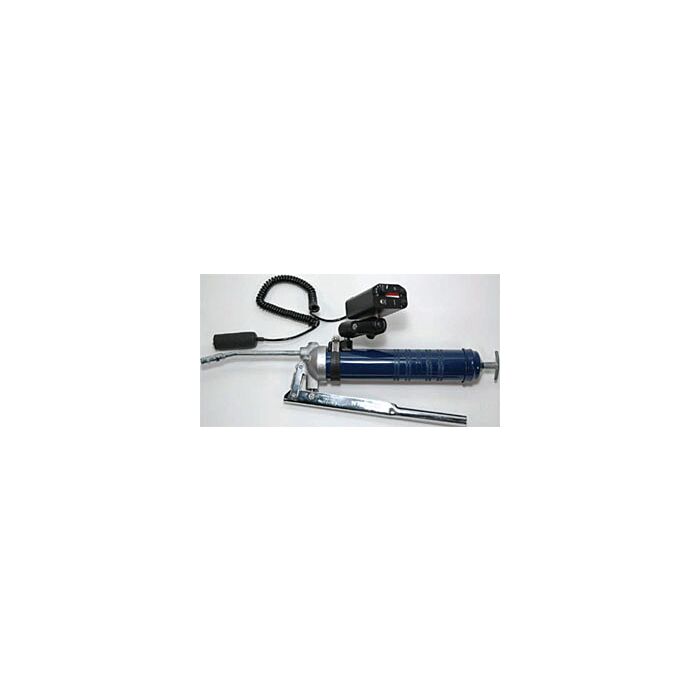

U.E. Systems UP-201
Ultraprobe 201 Grease Caddy

Order #: UP-201

Mfg #: UP-201

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $2,709.21 Regular Price $2,793.00

U.E. Systems UP-201

Ultraprobe 201 Grease Caddy

Order #: UP-201

Mfg #: UP-201

Special Price $2,709.21 Regular Price $2,793.00
Availability: Ships in 3-4 weeks

Product Highlights

  • Hear when the grease is being applied
  • Recognize when to stop greasing
  • Prolong equipment life
  • Prevent over lubrication
  • Save on man-hours
  • Save on operating costs
  • Improve maintenance efficiencies
  • Easy to read LED's provide visual indication of ultrasound amplitude
  • Use the LED bar graph as a guide to know when to stop applying grease.
  • Built-in front-end lamp to illuminate dark areas
  • Swivel Base adjusts to odd angles
  • Housing: Attaches directly to the grease gun, gives visual & audible indication for proper lubrication.
  • Construction: Aluminum
  • Dimensions: 5.25" x 2.65" x 1.25" (13.3 x 6.7 x 4.5 cm) (LWH)
  • Operating Temperature: 32°F-140°F (0°- 60°C)
  • Relative Humidity: 10-95% non-condensing at up to 86°F (30°C)
  • Circuitry: SMD/Solid State heterodyne receiver
  • Transducer: Piezoelectric (Acoustically isolated from Grease Gun)
  • Frequency Response: Peak response: centered around 38 kHz
  • Indicator: 10 Segment LED Bar Graph (red)
  • Sensitivity Selection: 8 position precision attenuation
  • Power: Rechargeable nickel metal hydride
  • Power off: Time delay
  • Low Battery Indicator: LED
  • Operating Temp. Range: -22 to 167 F (-30 to +75 C)
  • Cable: 48" shielded
  • Deluxe noise isolating headset for hardhat use. Over 23 dB of noise attenuation. Meets or exceeds ANSI Specifications, & OSHA standards.
  • Attachment: Universal: fits most commercially used cartridge grease guns.
  • Weight: 16 oz (.45 kg)
  • Warranty: 1 year parts/labor standard

Each Unit Includes

  • * Grease gun sold separately
