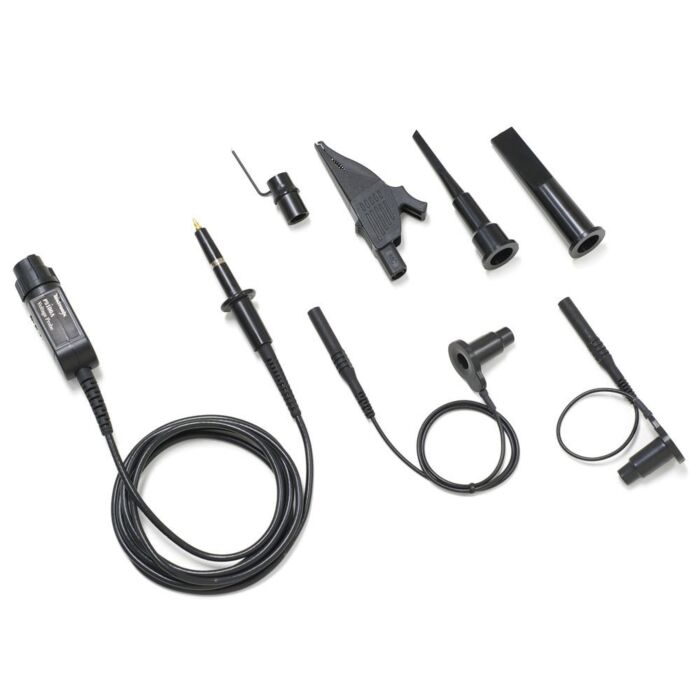

Tektronix P5100A-PKG 10-Pack of High Voltage Probe; 100X, 500 MHz, 2.5kV

Order # P5100A-PKG

Mfg # P5100A-PKG

800-828-1470

$11,196.90

Overview
Technical Resources

Home

Tektronix P5100A-PKG 10-Pack of High Voltage Probe; 100X, 500 MHz, 2.5kV

Tektronix P5100A-PKG 10-Pack of High Voltage Probe; 100X, 500 MHz, 2.5kV

Order # P5100A-PKG | Mfg # P5100A-PKG

New

Tektronix P5100A-PKG 10-Pack of High Voltage Probe; 100X, 500 MHz, 2.5kV

$11,196.90

Call for availability

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

The P5100A is a low input capacitance high-voltage probe (2.5 kV) designed for higher-frequency applications. The probe can be compensated to match plug-ins and oscilloscopes with nominal input capacitances of 7-30 pF. A variety of screw-on accessories provide easy connection to the device-under-test.

DC to 500 MHz 2500 VPeak
1000 VRMS CAT II 100X with Readout Coding
UL3111-1, EN61010-1 IEC61010-2-031, CSA1010.1, CSA1010.2.031
7 to 30 pF Compensation Range

Technical Resources

Tektronix P5100A, P5122, P5150 Datasheet
