Product Highlights

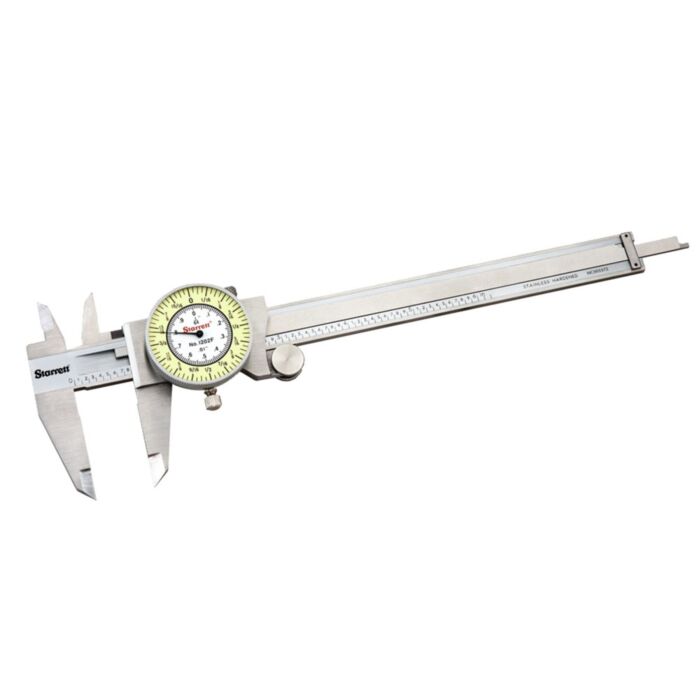

The Starrett 1202F Series Fractional Dial Calipers show measurements as fractions on the yellow outer scale with 1/64th inch graduation, and decimal measurements on the white inner scale with 1/100th inch graduations. This series provides quick, accurate measurement of outside dimensions, inside dimensions, and depth. This series features 0-6" fractional range. 6", Grad. in Fractions, in Fitted Case
- Dial graduations of 0.01” and 1/64”, with one revolution equivalent to 0.100”
- Thumb-operated fine adjustment roll allows for one-hand use
- Lock screw holds the sliding jaw in position, to ensure a consistent measurement
- Rack teeth point down to keep foreign matter from clogging the gear, to help prevent measurement error
- Hardened stainless steel bar, measuring surfaces, rack, gears, and depth rod for accuracy and long life
- The 1202F shows measurements as fractions on the yellow outer scale with 1/64th-Inch graduations and decimal measurements on the white inner scale with 1/100th Inch graduations
- Sharp black graduations on the satin finished bar
