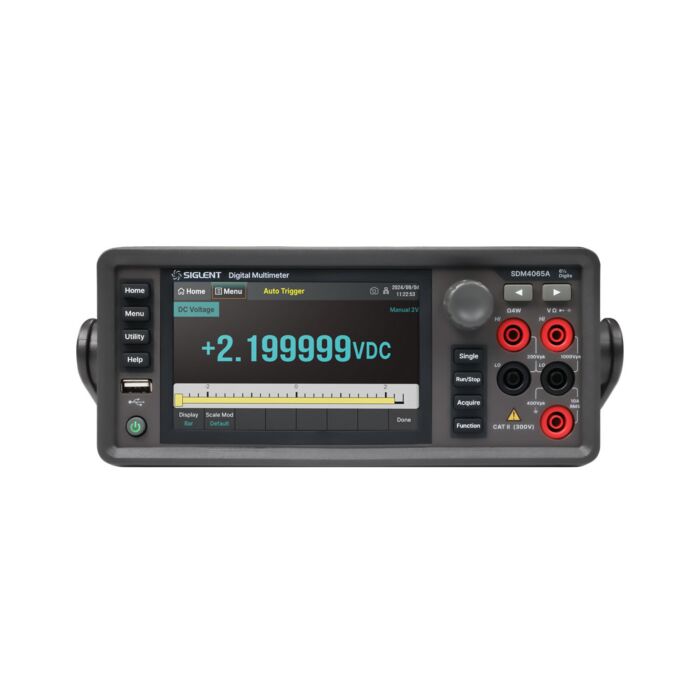

Siglent SDM4065A 6.5 Digit Benchtop Digital Multimeter

5-inch true color TFT-LCD display with a resolution of 800 x 480, paired with a touchable screen and a brand-new UI
Real 6.5 digit (2,200,000 count) readings resolution
Up to 50k rdgs/s of measurement speed, support a maximum sampling interval of 100 PLC and a minimum sampling interval of 0.001 PLC
512 MB RAM, capable of saving up to 2M readings for caching, support timestamp
256 MB Nand Flash, supports storage of various types of files such as readings, images, configuration files
4 trigger modes: auto trigger, single trigger, external trigger and level trigger
4 display modes: numerical, bar meter, trend chart and histogram
DC measurements support autozero functions
True-RMS AC Voltage and AC Current measurement
Support automatic switching between 10 A high current and 3 A low current measurement modes, and can be tested up to 30 A when paired with an external shunt
Support RTD, thermocouple and user-defined sensor
Support dual display and probe hold functions
Support standard SCPI remote control commands
Equipped with EasyDMM-X host computer control and sampling software
Communications interface: USB Device (optional USB-GPIB adapter), USB Host, LAN
Support BNC VMC output, Trigger input
Support VNC, Web-server
Chinese and English menu, and built-in help system for easy information retrieval
