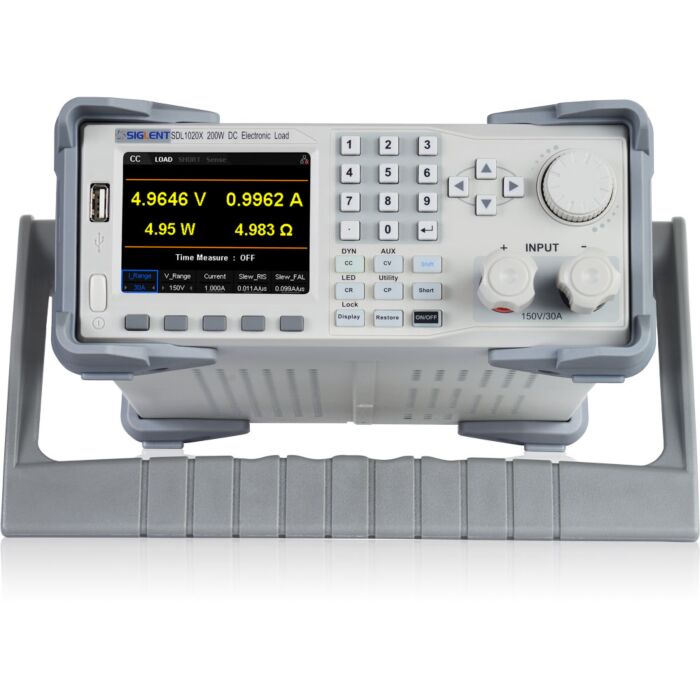

Siglent SDL1020X-E
DC Electronic Load,200W DC150V/30A,RS232/USB/LAN/GPIB

Order #: SDL1020X-E

Mfg #: SDL1020X-E

Questions about availability or need help? Contact Us:

(800) 633-0561
$698.60

Siglent SDL1020X-E

DC Electronic Load,200W DC150V/30A,RS232/USB/LAN/GPIB

Order #: SDL1020X-E

Mfg #: SDL1020X-E

$698.60
Availability: Ships in 3-4 weeks

Product Highlights

With a user-friendly interface and superb performance specifications, all models of the SDL1000X/X-Es come standard with a 3.5-inch TFT-LCD display and support four types of static/dynamic modes: CC/CV/CR/CP. In addition, they have a maximum input range up to 150 V/30 A and 200 W / 300 W (depending on the model), measurement resolution of 0.1 mV/0.1 mA, and adjustable slew rate up to 2.5 A/us.

One of the exciting features of this new e-load is its high-speed response performance. In dynamic test mode, the highest frequency of periodically switching between two set levels (Level A and Level B) can be set up to 25 kHz, which enables the e-load to track and monitor changes in high-frequency signals.

For effective security and reliability, the SDL1000X/X-E series provide comprehensive protection including over-current protection, over-voltage protection, over-power protection, over-temperature protection and reverse voltage protection. When any of these occur, the loads will immediately turn off the input and stop sinking the current in order to keep the equipment safe from damage.

The SDL1000X/X-E series is equipped with even more additional features to help you with your testing. For example, the loads have a CR-LED mode designed specifically for LED driver testing. They can emulate LED

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Weight 3.13 lbs / 1.42 kg
Length 5.7 in / 15 cm
Width 6 in / 16 cm
Height 8.6 in / 22 cm
Country of origin USA
Hose 1 Quick-test Hose, Stainless Steel ends, 3ft / 0.9m long
Process Connection 1/4" Male NPT
Reference Connection None
