SDM4000A Series offers 5-1/2 digit (220,000 counts) with a full-scale display range from -219,999 to +219,999. Its exceptional performance ensures precise capture of subtle current variations and large voltage fluctuations. SDM4000A integrates USB Host, USB Device, and LAN interfaces, with an optional USB-GPIB module. It supports standard SCPI remote control commands, PC-based software, and compatibility with the latest mainstream multimeter command sets. Its embedded web server enables direct remote control and programming via a browser, fulfilling diverse communication and automation needs.
SDM4055A offers four modes: Numeric for instant clarity, Histogram for data distribution analysis, Trend Chart for dynamic data pattern observation and trend prediction, and Bar Chart for cross-condition comparisons and rapid analysis of variations and patterns under different conditions, empowering users to visualize and analyze data with deeper insights.
SDM4055A supports five operations: statistics, limits, dBm, dB, and relative measurements. It rapidly calculates max/min, average, peak-to-peak, standard deviation, and sample count, while enabling pass/fail testing via preset thresholds. Voltage-to-power conversion, dB-based relative measurements, and deviation analysis further enhance versatility.
- Real 5-1/2 digits readings resolution (240,000 counts)
- Reading rate from 5 rdgs/s to 4.8k rdgs/s
- 512 MB RAM, capable of saving up to 2M readings for caching
- Equipped with EasyDMM-X host computer control and sampling software
- 5-inch true color TFT-LCD display
Applications
- Research and Development Laboratories
- Automatic Production Testing
- Calibration Laboratories
- Repair and Maintenance
- Precision Digital and Audio Signal Sampling
Each Unit Includes

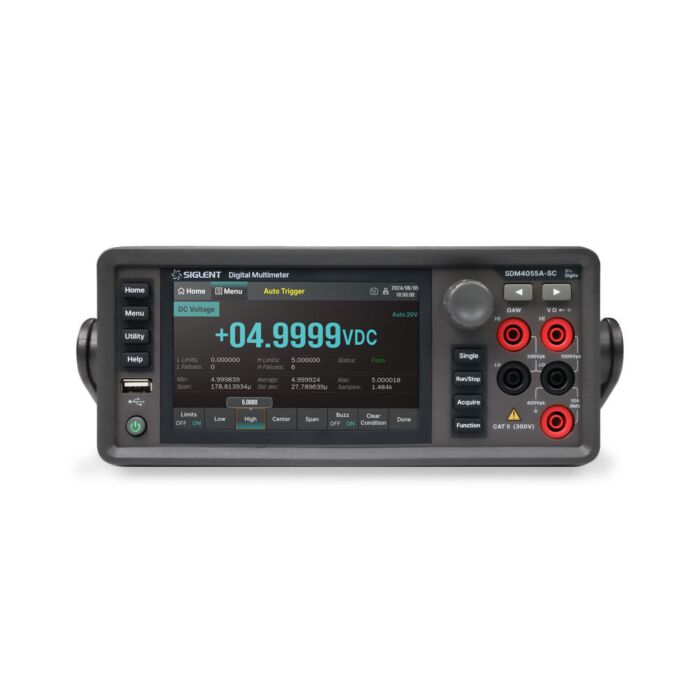

- Benchtop Digital Multimeter with 5-1/2 Digits
- Power Cord
- Test Leads
- Alligator Clips
- USB Cable
- Quick Start Guide
